HP Pavilion dv3 User Manual

4–54 Maintenance and Service Guide
Removal and replacement procedures
■ Processor (see “Processor” on page 60)

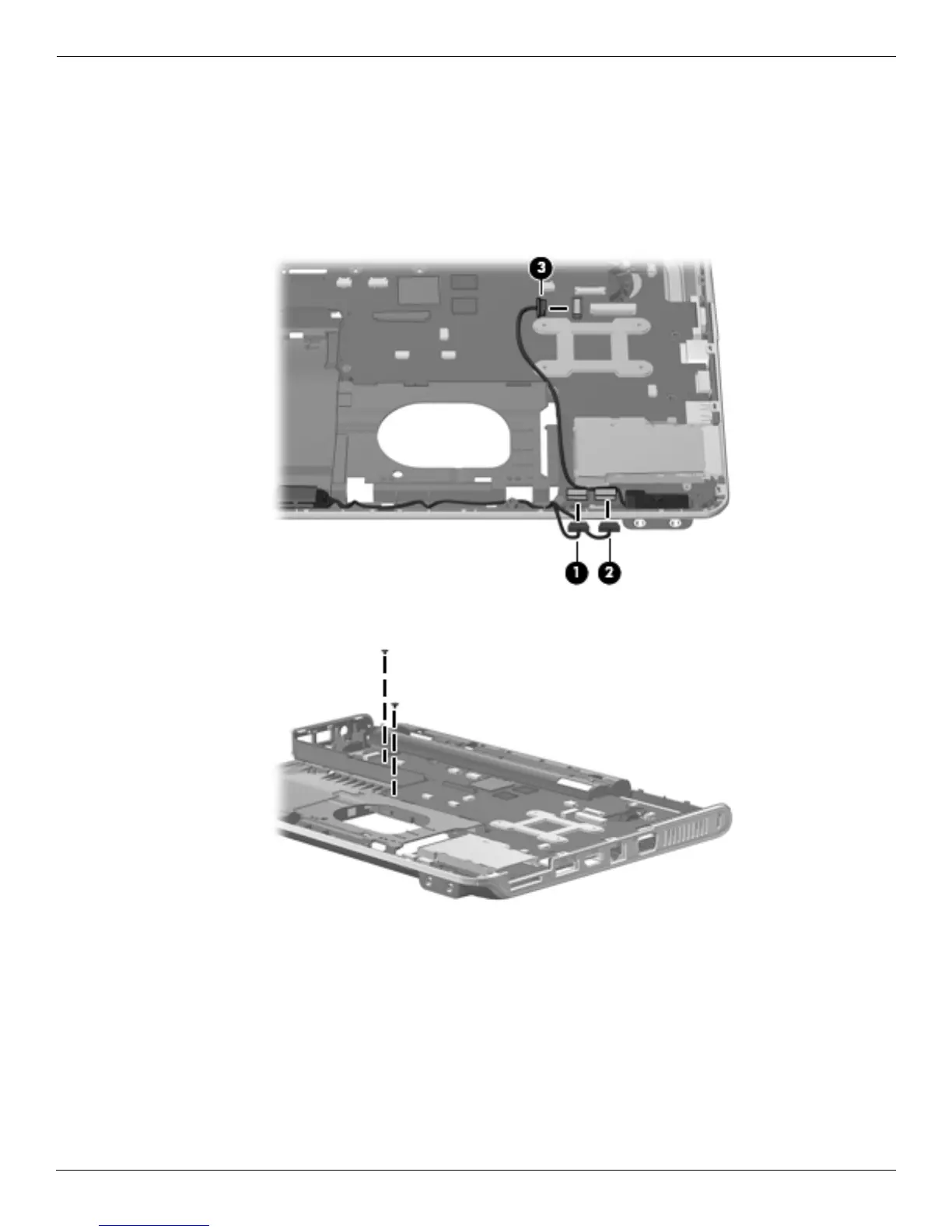

Remove the system board:
1. Disconnect the following cables from the system board:
1 LED board cable
2 Bluetooth module cable
3 Audio board cable
2. Remove the two Phillips PM2.0×4.0 screws that secure the system board to the base enclosure.
