HP Pavilion dv3

Removal and replacement procedures
Maintenance and Service Guide 4–55

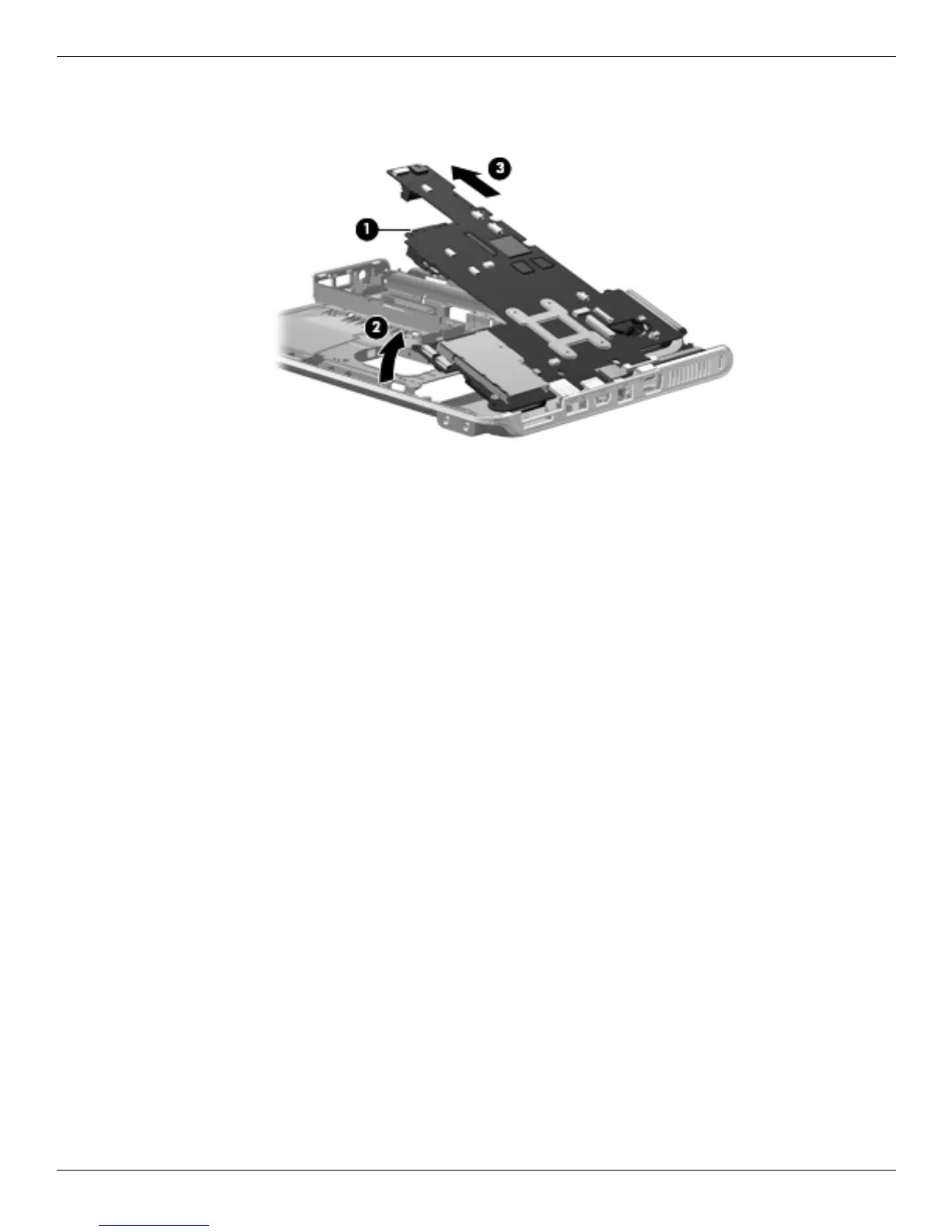

3. Use the optical drive connector 1 to lift the left side of the system board 2 until it rests at an angle.
4. Remove the system board from the base enclosure by pulling it away at an angle 3.
Reverse this procedure to install the system board.
