Removal and replacement procedures
Maintenance and Service Guide 4–33

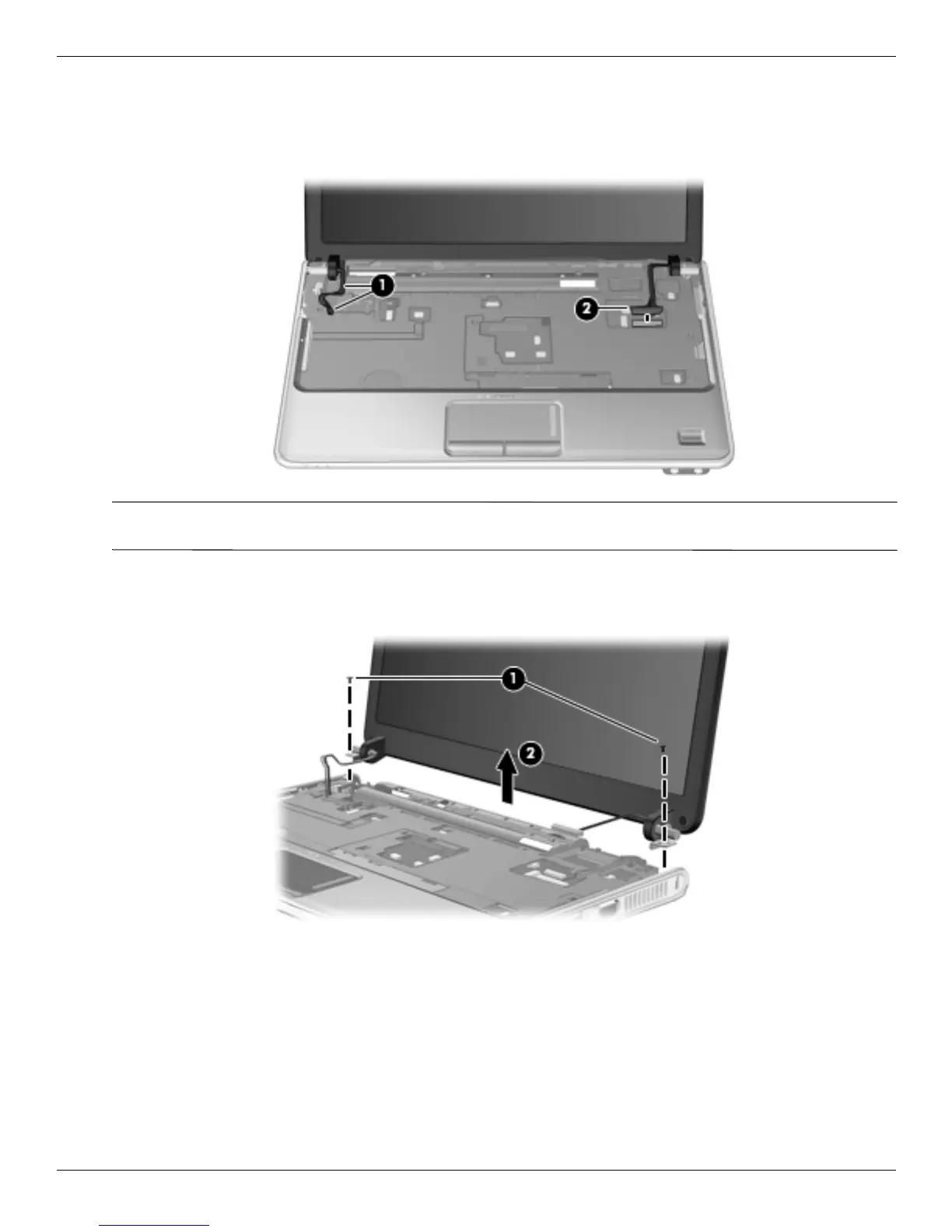

Remove the display assembly:
1. Remove the WLAN antenna cables 1 from the opening in the base enclosure.
2. Disconnect the display panel cable 2 from the system board.
Ä
CAUTION: Support the display assembly when removing the following screws. Failure to support the display
assembly can result in damage to the display assembly and other computer components.
3. Remove the two Phillips PM2.5×6.0 screws 1 that secure the display assembly to the computer.
4. Lift the display assembly 2 straight up and remove it.
