4–34 Maintenance and Service Guide
Removal and replacement procedures
✎
Steps 5 through 21 provide display assembly internal component removal information for computer models
equipped with AntiGlare display assemblies.

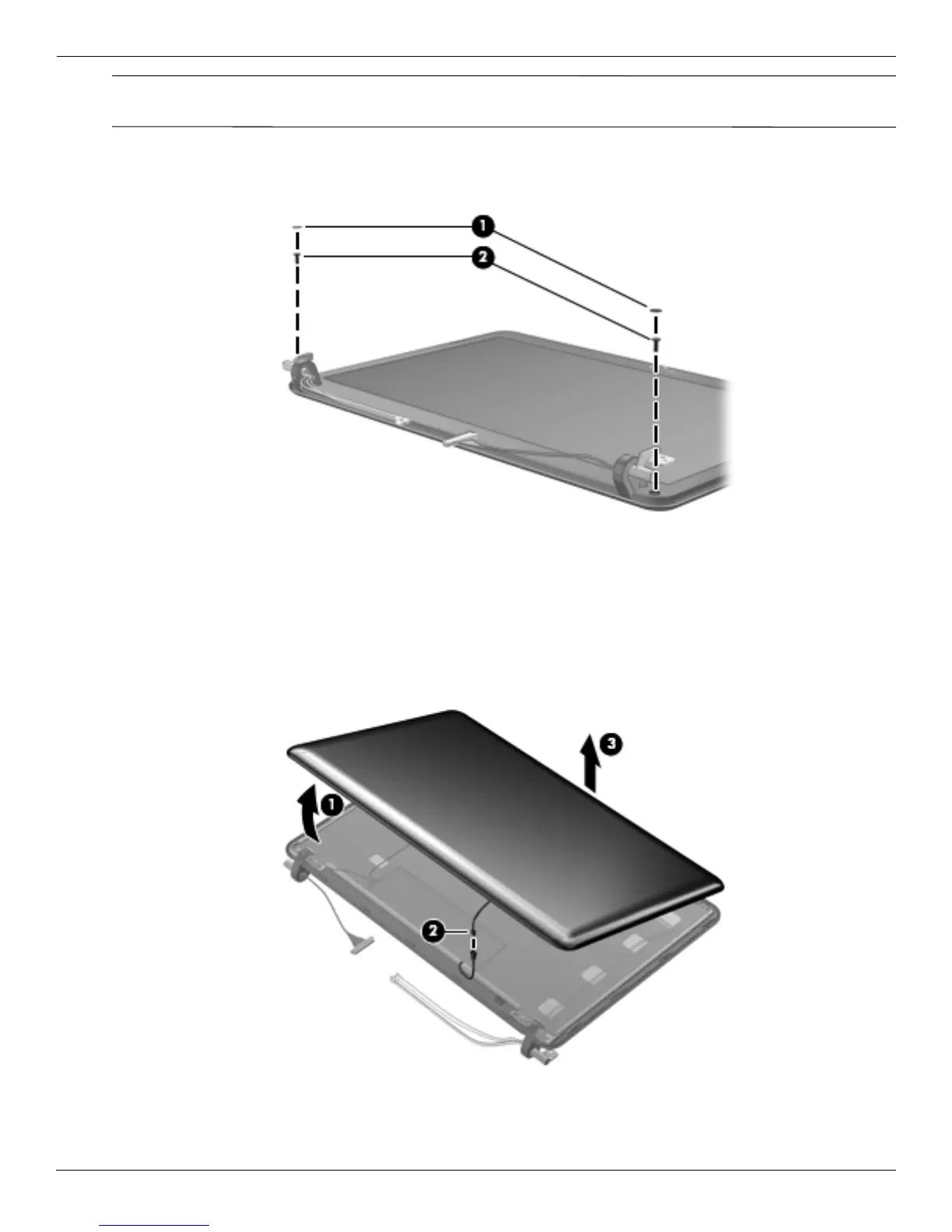

5. If it is necessary to replace the display enclosure or any of the display assembly internal components, remove
the Mylar screw covers 1 and the two Phillips PM2.5×6.0 screws 2 on the display bezel lower edge.
6. Turn the display assembly upside down with the bottom edge toward you.
7. Detach the bottom edge of the display enclosure 1 and lift it up as far as the display LED cable allows.
8. Disconnect the display LED cable 2.
9. Remove the display enclosure 3. Display enclosures are available using the following spare part numbers:
❏ 531791-001—For use only with dv3-2000 computer models with black trim
❏ 531797-001—For use only with dv3-2000 computer models with white trim
10. If it is necessary to replace the webcam/microphone module, release the two metal tabs 1 built into the display
panel shielding.
