Removal and replacement procedures
Maintenance and Service Guide 4–35

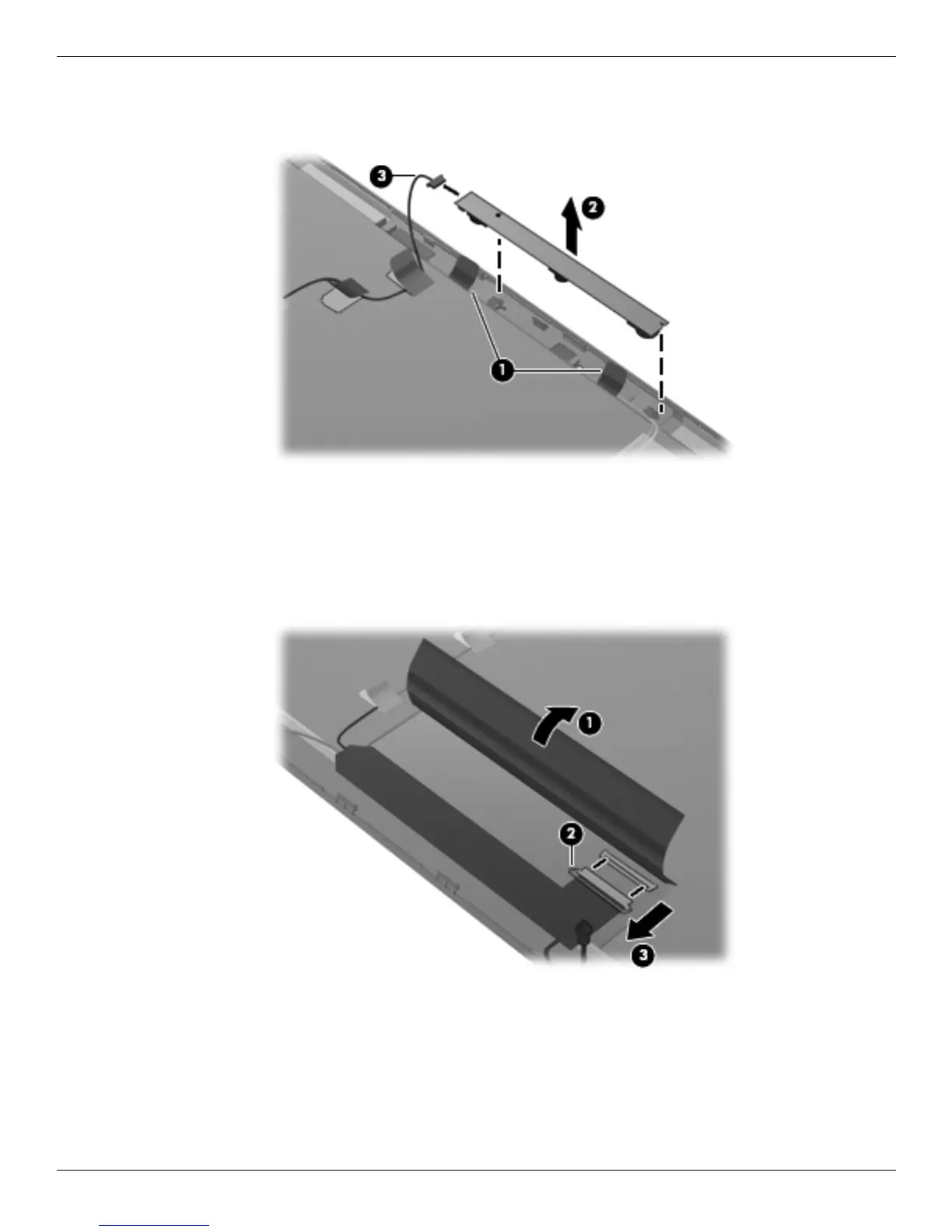

11. Lift the webcam/microphone module 2 as far from the display bezel as the webcam/microphone cable allows.
12. Disconnect the webcam/microphone module 3 from the webcam/microphone module.
13. Remove the webcam/microphone module. The webcam/microphone module is available using spare part
number 531785-001.
14. If it is necessary to replace the display panel cable, fold back the flap built into the display panel shielding 1.
15. Lift the top edge of the display panel cable bracket 2 and swing it toward you and down.
16. Disconnect the display panel cable from the display panel 3.
