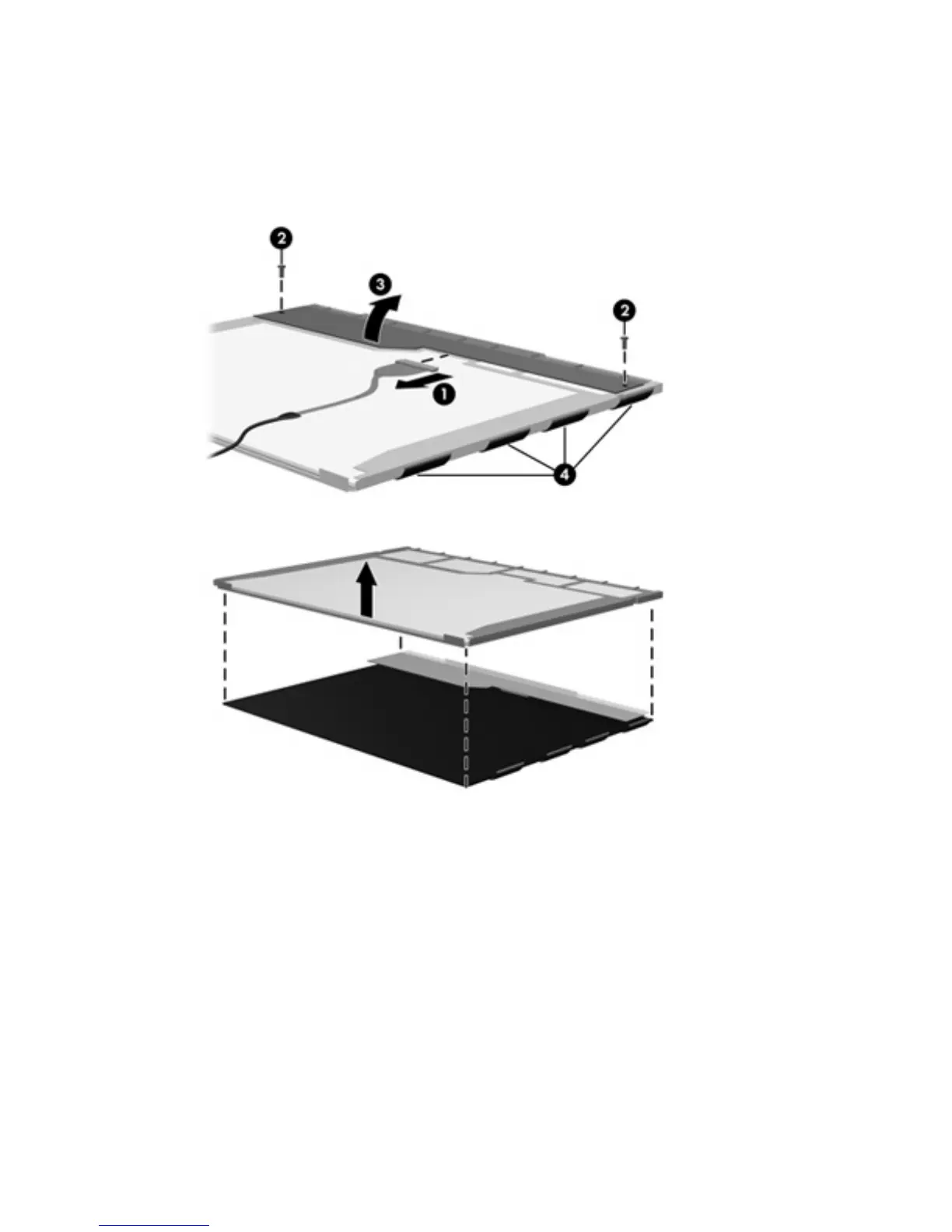

19.
Di
sconnect the dis
play cable
(1)
from the LCD panel.
20.
Remove the screws
(2)
that secu
re the LCD panel to
the display rear pane
l.
21.
Release the LCD panel
(3)
from th
e display re
ar panel.
22.
Re
lease the ta
pe
(4)
that secures the LCD panel
to the display rea
r panel.
23.
Remove the LCD panel.
24.
Recycle t
he LCD panel and backlight.
Display
129
136
138
Table of Contents
Table of Contents
5
1 Product Description
9
2 External Component Identification
14
Top Components
14
Touchpad
14
Lights
15
Buttons and Fingerprint Reader (Select Models Only)
17
Keys
19
Front Components
20
Right-Side Components
20
Left-Side Components
21
Bottom Components
22
Display Components
23
Wireless Antennae
24
3 Illustrated Parts Catalog
25
Serial Number Location
25
Computer Major Components
26
Display Assembly Components
32
Plastics Kit
34
Mass Storage Devices
35
Miscellaneous Parts
36
Sequential Part Number Listing
38
4 Removal and Replacement Procedures
44
Preliminary Replacement Requirements
44
Plastic Parts
44
Service Considerations
44
Tools Required
44
Cables and Connectors
45
Drive Handling
45
Electrostatic Discharge Damage
46
Grounding Guidelines
46
Packaging and Transporting Guidelines
47
Workstation Guidelines
47
Equipment Guidelines
48
Unknown User Password
49
Component Replacement Procedures
50
Serial Number
50
Battery
51
Computer Feet
51
WLAN Module
53
Optical Drive
56
Memory Module
57
Hard Drive
59
Keyboard
62
Switch Cover
65
Top Cover
66
Fingerprint Reader Board
69
Display Assembly
71
System Board
78
Default Chapter
82
Disconnect All External Devices Connected to the Computer
82
Disconnect the Power from the Computer by First Unplugging the Power Cord from the AC Outlet and then Unplugging the AC Adapter from the Computer
82
Remove the Battery (See Battery
82
Remove the Following Components
82
Hard Drive
82
Keyboard
82
Optical Drive
82
Switch Cover
82
Bluetooth Module
83
RTC Battery
85
Modem Module
87
Heat Sink
88
Processor
90
Fan
92
Shut down the Computer. if You Are Unsure Whether the Computer Is off or in Hibernation, Turn the Computer On, and then Shut It down through the Operating System
82
Speakers
82
5 Setup Utility
94
Starting the Setup Utility
94
Using the Setup Utility
95
Changing the Language of the Setup Utility
95
Navigating and Selecting in the Setup Utility
95
Displaying System Information
96
Exiting the Setup Utility
96
Restoring Default Settings in the Setup Utility
96
Setup Utility Menus
97
Diagnostics Menu
98
6 Specifications
99
Computer Specifications
99
13.3-Inch, WXGA, Brightview Display Specifications
100
Hard Drive Specifications
101
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive Specifications
102
DVD/CD-RW Combo Drive Specifications
103
System DMA Specifications
104
System Memory Map Specifications
104
System Interrupt Specifications
105
System I/O Address Specifications
106
7 Screw Listing
108
Phillips PM3.0×4.0 Screw
108
Phillips PM2.5×6.0 Captive Screw
109
Black Phillips PM2.5×4.0 Screw
110
Phillips PM2.5×11.0 Captive Screw
111
Phillips PM2.0×4.0 Screw
112
Phillips PM2.5×7.0 Screw
114
Phillips PM2.5×5.0 Screw
116
Phillips PM2.0×3.0 Captive Screw
118
Silver Phillips PM2.5×4.0 Screw
119
Phillips PM2.0×5.0 Captive Screw
120
8 Backup and Recovery
121
Recovering System Information
121
Creating Recovery Discs
121
Backing up Your Information
122
When to Back up
122
Backup Suggestions
123
Create a System Restore Point
123
Using System Restore Points
123
When to Create Restore Points
123
Performing a Recovery
124
Recovering from the Dedicated Recovery Partition (Select Models Only)
124
Recovering from the Recovery Discs
124
Restore to a Previous Date and Time
124
9 Connector Pin Assignments
126
Audio-Out (Headphone)
126
Audio-In (Microphone)
126
External Monitor
127
Modem)
128
Network)
128
Universal Serial Bus
129
10 Power Cord Set Requirements
130
Requirements for All Countries or Regions
130
Requirements for Specific Countries or Regions
131
Battery
132
Display
132
Index
138
