2–6 Maintenance and Service Guide
External component identification

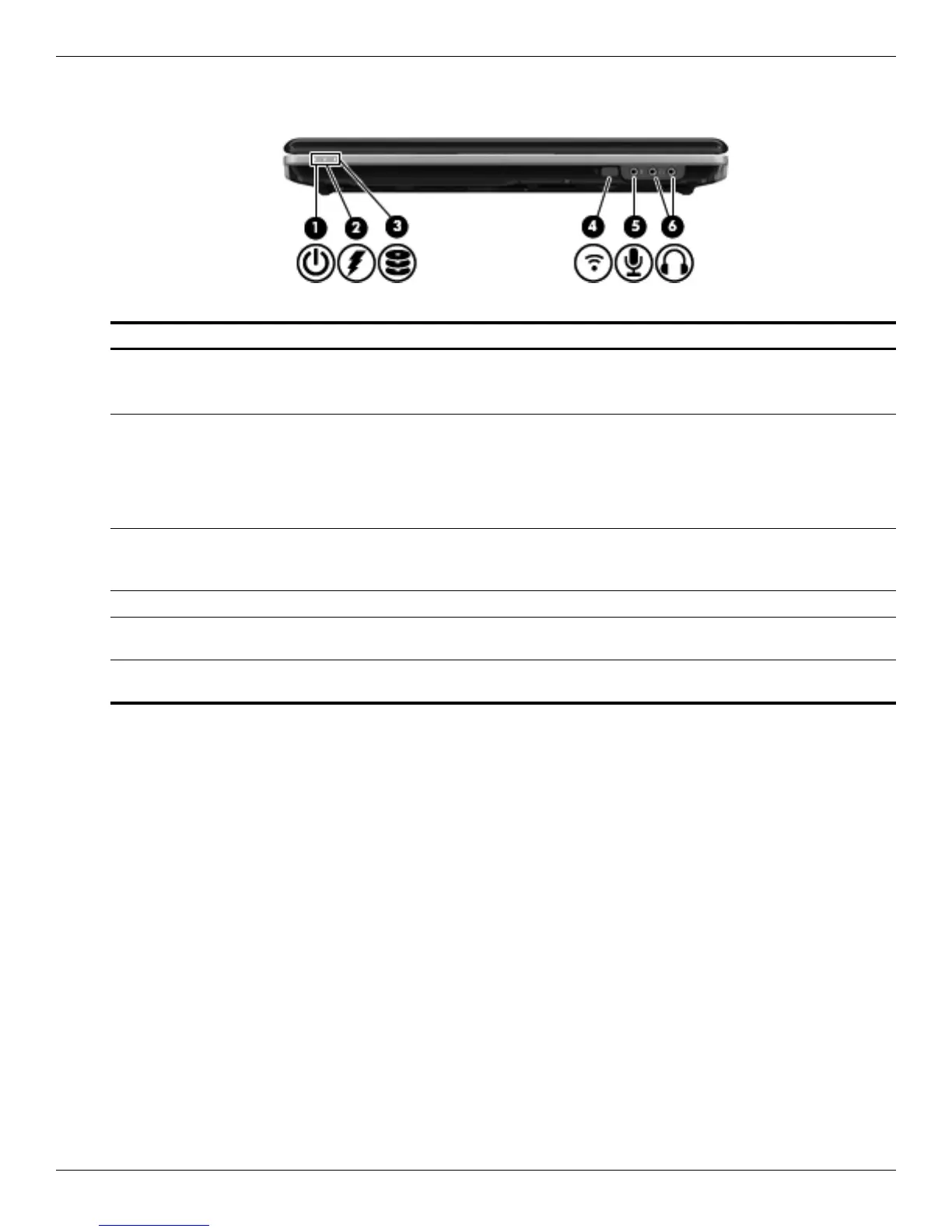

Front components
Item Component Description
1 Power light On—The computer is on.
Flashing—The computer is in Sleep.
Off—The computer is off or in Hibernation.
2 Battery light On—The battery is charging.
Flashing—The battery reaches a low battery level or a critical battery level.
Off—If the computer is connected to an external power source, the light is off
when all batteries in the computer are fully charged. If the computer is not
connected to an external power source, the light is off until the battery
reaches a low battery level.
3 Drive light Flashing—The hard drive or the optical drive is being accessed.
On—The HP ProtectSmart Hard Drive Protection has temporarily parked the
internal hard drive, and if present, the hard drive in the SmartBay.
4 Consumer infrared lens Receives a signal from the HP Remote Control.
5 Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array
microphone, or monaural microphone.
6 Audio-out (headphone) jacks (2) Produces sound when connected to optional powered stereo speakers,
headphones, ear buds, headsets, or television audio.
