4–14 Maintenance and Service Guide
Removal and replacement procedures
TV tuner
Before removing the TV tuner:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC outlet and then
disconnecting the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-7).
5. Remove the Mini Card compartment cover (see “RTC battery” on page 4-12).

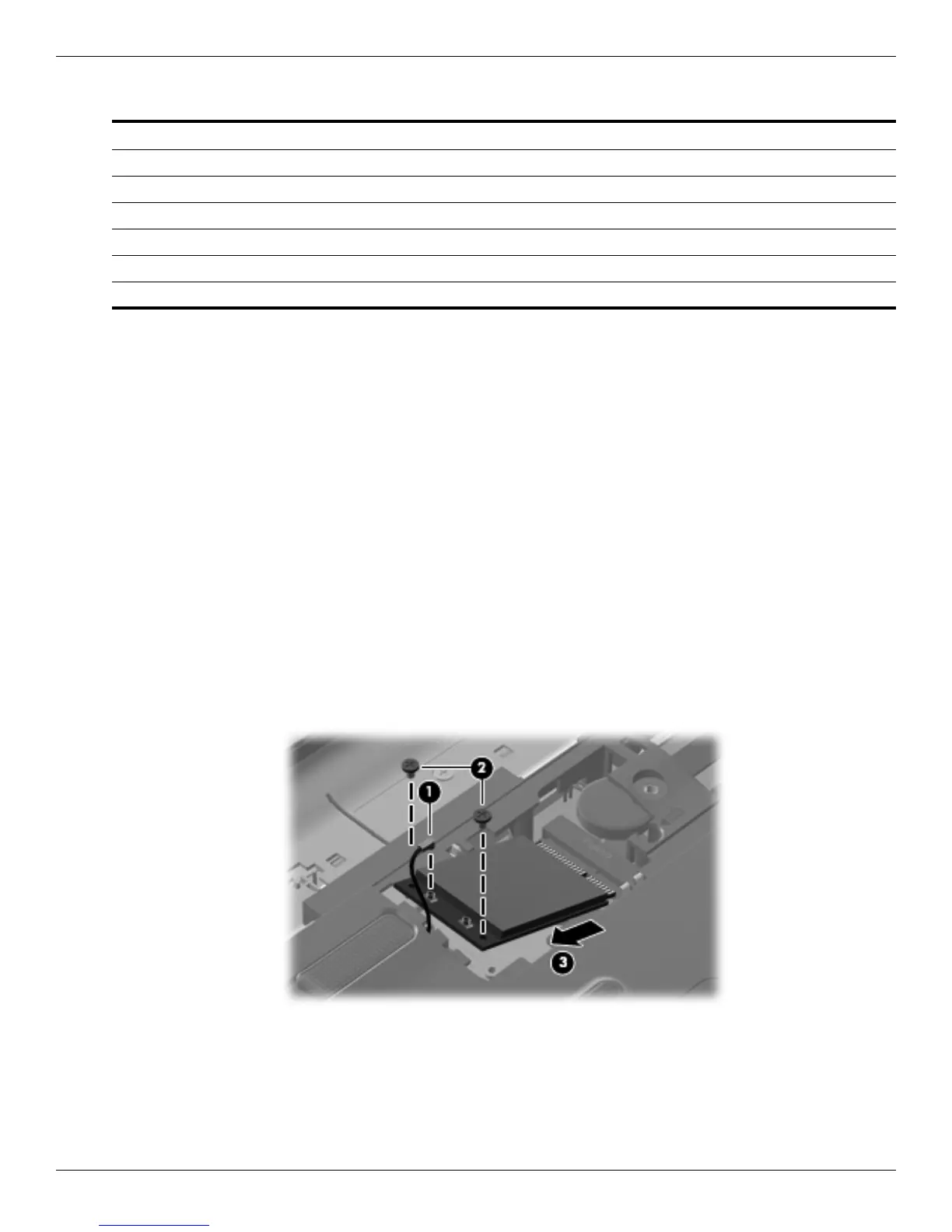

Remove the TV tuner:
1. Disconnect the TV tuner cable 1 from the system board.
2. Remove the two Phillips PM2.0×5.0 screws 2 and slide the TV tuner to the left 3 to remove it.
Memory modules are designed with a notch to prevent incorrect insertion into the TV tuner slot.
Reverse this procedure to install the TV tuner.
Description Spare part number
ATSC/NTSC TV tuner antenna 482900-001
TV tuner antenna with PAL jack 482900-002
ATSC/NTSC TV tuner 482899-001
DVB-T/ANG Integrated TV tuner 482899-002
DVB-T tuner 482899-003
DVB-T tuner for use only in the AP region 482899-004
