Remo
v
al and r
eplacement procedur
es
Maintenance and S
ervi
ce Guide
4–9
7.

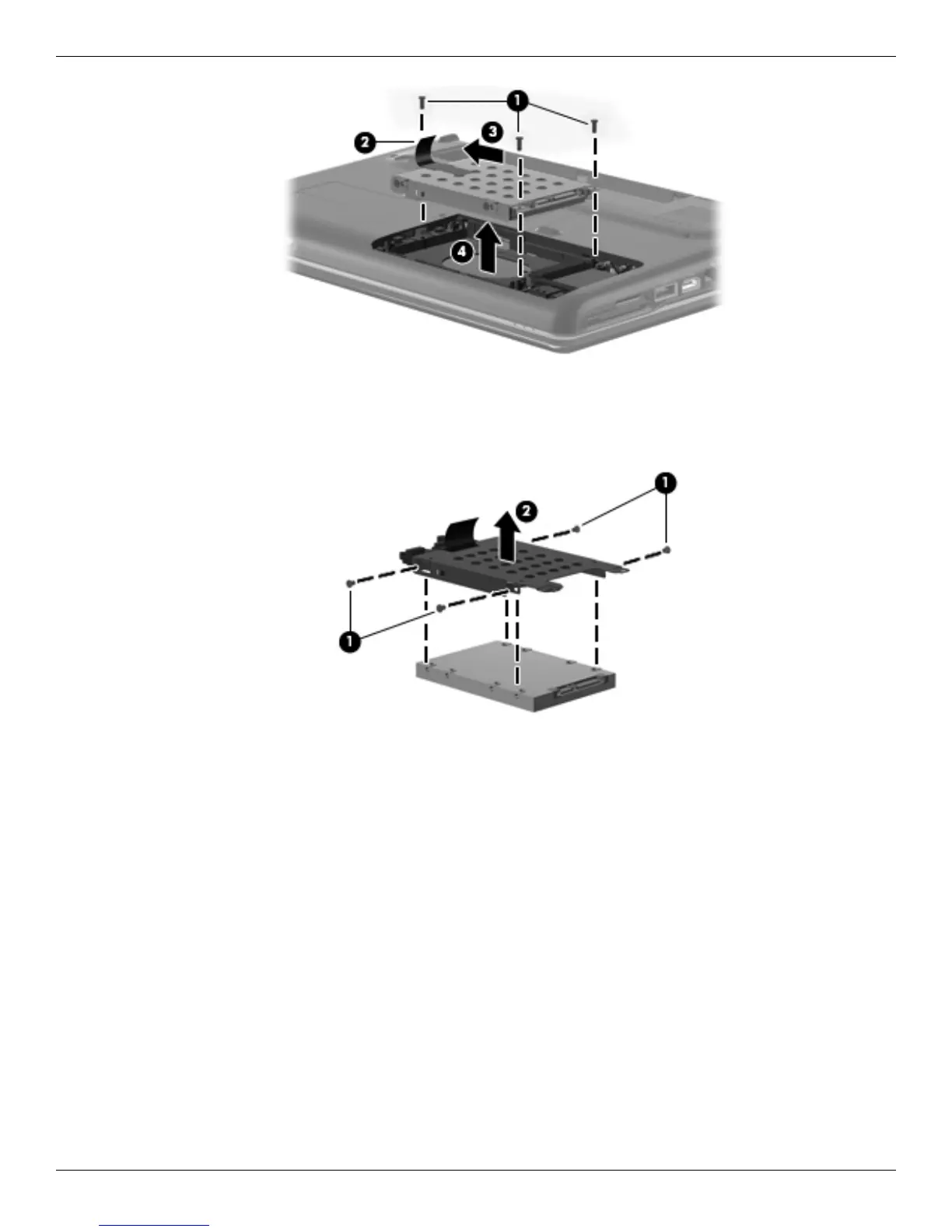

If it is necessary to replace the hard driv
e bracket:
a.
Remov
e the two Phillips PM3.0×3.0 scre
ws
1
from each side of the hard dri
v
e.
b
.
Lift the bracket
2
strai
ght up to remov
e it from the hard dri
v
e.
Rev
erse this procedure to reassemb
le and install the hard dri
ve.
