4–28 Maintenance and Service Guide
Removal and replacement procedures

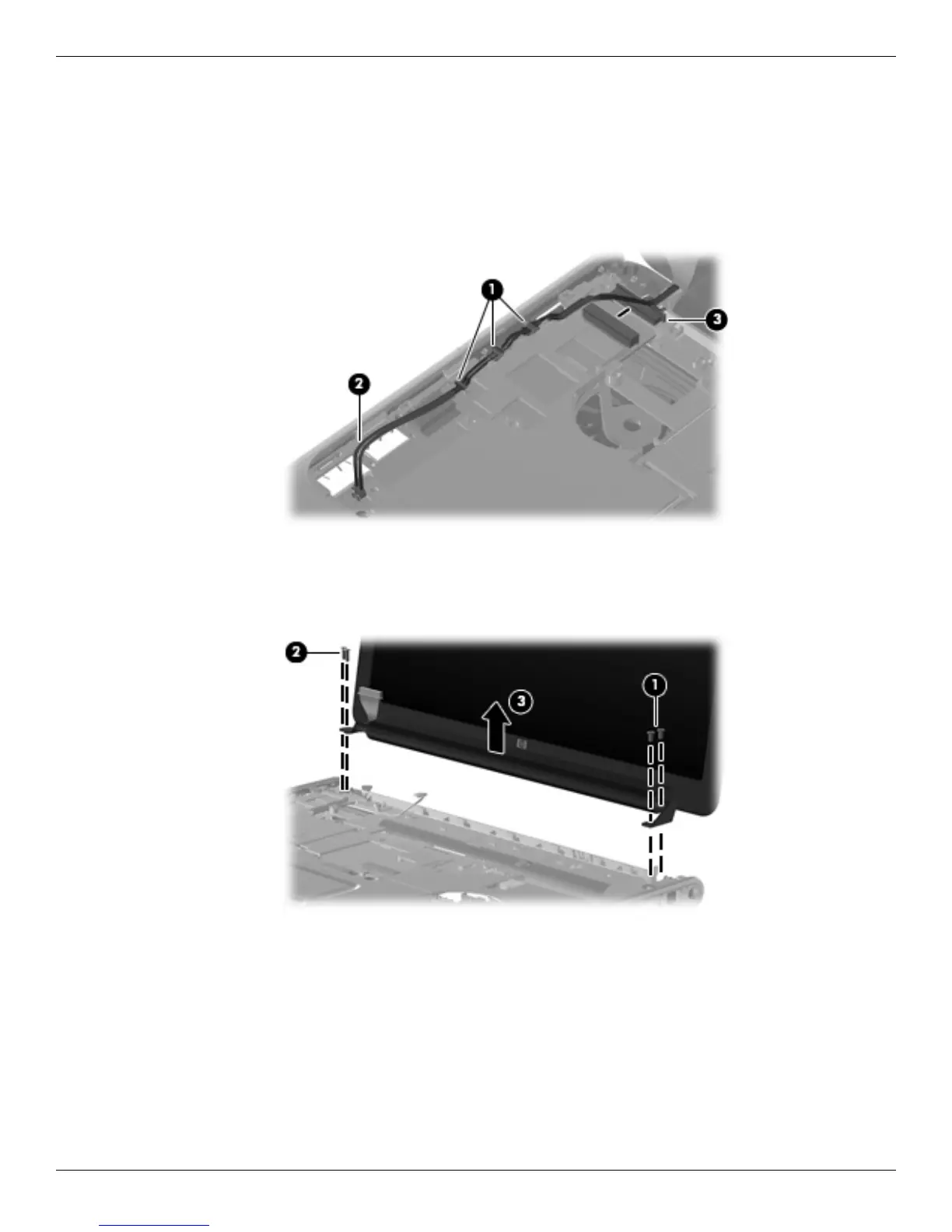

Remove the display assembly:
1. Turn the computer display-side up, with the front toward you.
2. Open the display as far as possible.
3. Remove the wireless antenna cable from the routing channels and clips 1 and disconnect it from the base
enclosure 2.
4. Disconnect the display cable 3 from the system board.
5. Remove the two Phillips PM2.5×5.0 screws 1 and the two Phillips PM2.5×8.0 screws 2 that secure the
display assembly to the computer
6. Remove the display assembly 3.
