HP Pavilion DV4-2160 Maintenance And Service Guide
4
of 1
of 1 rating
141 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
4–5
4
Maintenance and Servi
ce Guide
Remo
v
al and replacement procedures
Remov

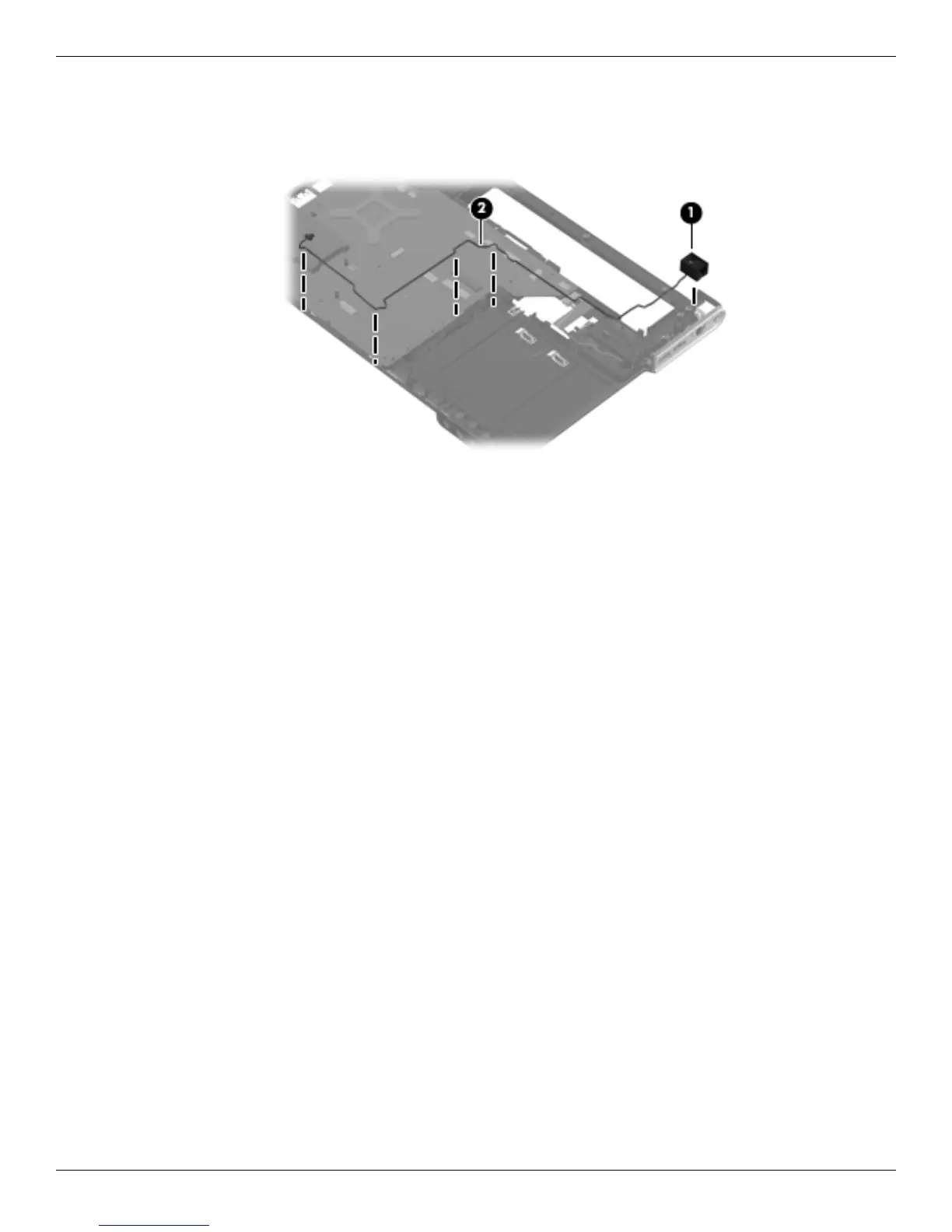

e the RJ-11 connector:
1.
Remov
e the RJ-11 connector
1
from the clip built int
o the base enclosure.
2.
Remov
e the RJ-11 connector cable
2
from the routing channel bu
ilt into the base enclosure.
Re
verse this procedure to
install the RJ-11 connector
.
95
97
Table of Contents
Default Chapter
4
Table of Contents
4
1 Product Description
8
Battery
11
Display
11
2 External Component Identification
12
Top Components
12
Touchpad
12
Lights
13
Buttons, Speakers, and Fingerprint Reader
14
Keys
15
Display
16
Front Components
17
Rear Component
18
Right-Side Components
19
Left-Side Components
20
Bottom Components
21
Wireless Antennas
22
Additional Hardware Components
23
3 Illustrated Parts Catalog
24
Service Tag
24
Computer Major Components
25
Display Assembly Subcomponents
32
Plastics Kit
33
Mass Storage Devices
34
Miscellaneous Parts
35
Sequential Part Number Listing
37
4 Removal and Replacement Procedures
43
Preliminary Replacement Requirements
43
Tools Required
43
Service Considerations
43
Plastic Parts
43
Grounding Guidelines
44
Workstation Guidelines
45
Component Replacement Procedures
47
Service Tag
47
Computer Feet
48
Battery
49
Hard Drive
50
Memory Module
52
RTC Battery
54
TV Tuner
56
WLAN Module
57
Optical Drive
61
Keyboard
62
Keyboard Cover
65
Power Button Board
67
Speaker Assembly
68
Display Assembly
69
Webcam/Microphone Module
75
Top Cover
76
Touchpad Button Board and Bracket
79
Fingerprint Reader Board (Select Models Only)
81
Modem Module (Select Models Only)
82
Bluetooth Module (Select Models Only)
84
Audio Board
86
USB Board
88
Power Connector
90
System Board
92
Connector (Select Models Only)
95
Heat Sink Assembly
97
Fan
99
Processor
101
5 Setup Utility
103
Starting Setup Utility
103
Using Setup Utility
103
Changing the Language of Setup Utility
103
Navigating and Selecting in Setup Utility
104
Displaying System Information
104
Restoring Default Settings in Setup Utility
104
Exiting Setup Utility
105
Setup Utility Menus
105
Main Menu
105
Security Menu
105
System Configuration Menu
106
Diagnostics Menu
106
6 Specifications
107
Computer Specifications
107
In WXGA Brightview Display Specifications
108
Hard Drive Specifications
109
System DMA Specifications
112
System Interrupt Specifications
113
System I/O Address Specification
114
7 Backup and Recovery
116
Overview
116
Creating Recovery Discs
117
Backing up Your Information
118
Using Windows Backup and Restore
119
Using System Restore Points
119
Performing a Recovery
120
Recovering from the Recovery Discs
121
Recovering from the Dedicated Recovery Partition (Select Models Only)
121
8 Connector Pin Assignments
122
Audio-In (Microphone)
122
External Monitor
123
Hdmi
124
Modem) (Select Models Only)
125
Network)
126
RJ-45 (Network)
126
Universal Serial Bus
127
9 Power Cord Set Requirements
128
Requirements for All Countries and Regions
128
Requirements for Specific Countries and Regions
129
10 Recycling
130
Battery
130
Display
130
