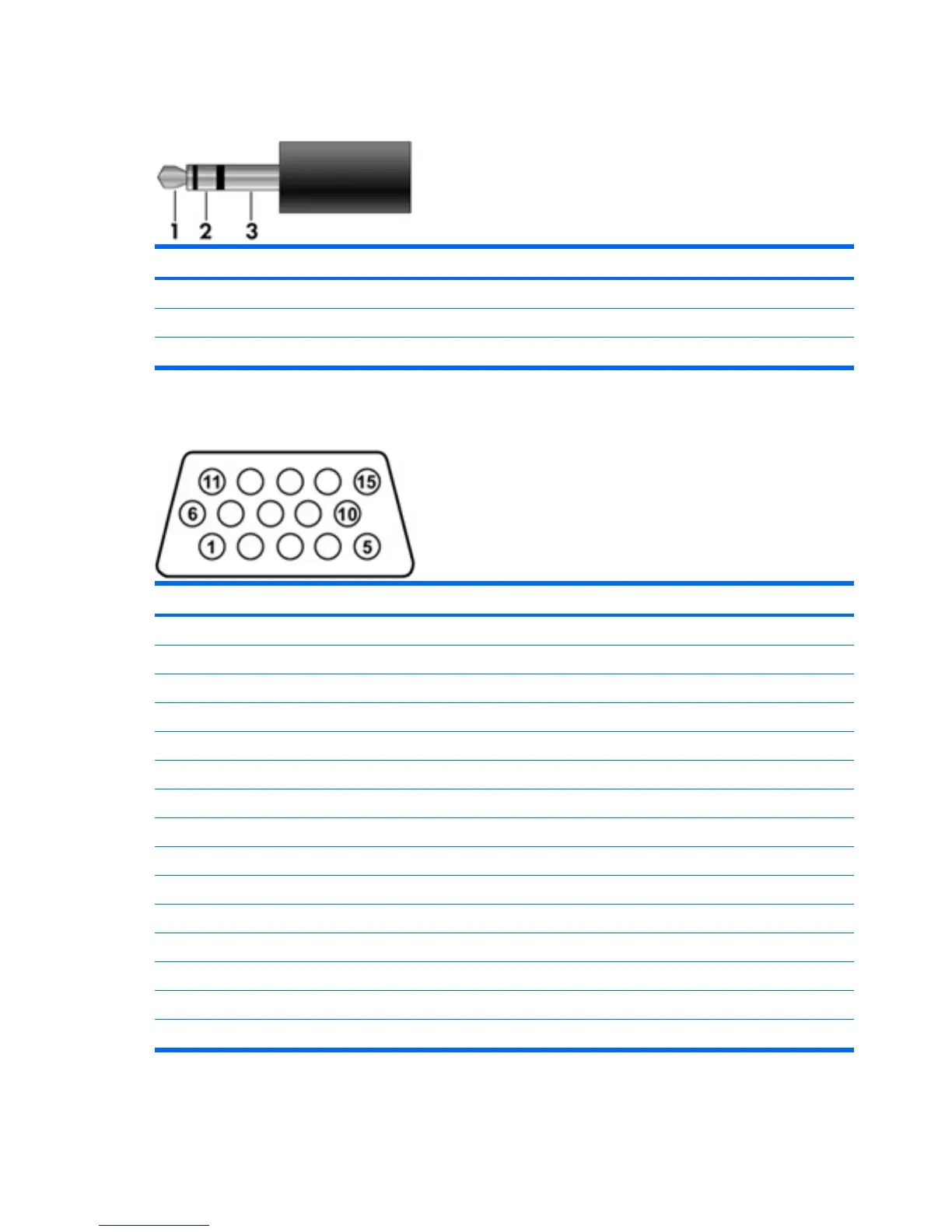

Audio-out (headphone)

Pin Signal

1 Audio out, left channel

2 Audio out, right channel

3 Ground

External monitor

Pin Signal

1 Red analog

2 Green analog

3 Blue analog

4 Not connected

5 Ground

6 Ground analog

7 Ground analog

8 Ground analog

9 +5 VDC

10 Ground

11 Monitor detect

12 DDC 2B data

13 Horizontal sync

14 Vertical sync

15 DDC 2B clock

148 Chapter 9 Connector pin assignments
