Speaker assembly
Description Spare part number
Speaker assembly 486801-001
Before removing the speaker assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 52).
5. Remove the switch cover and keyboard (see
Switch cover and keyboard on page 69).

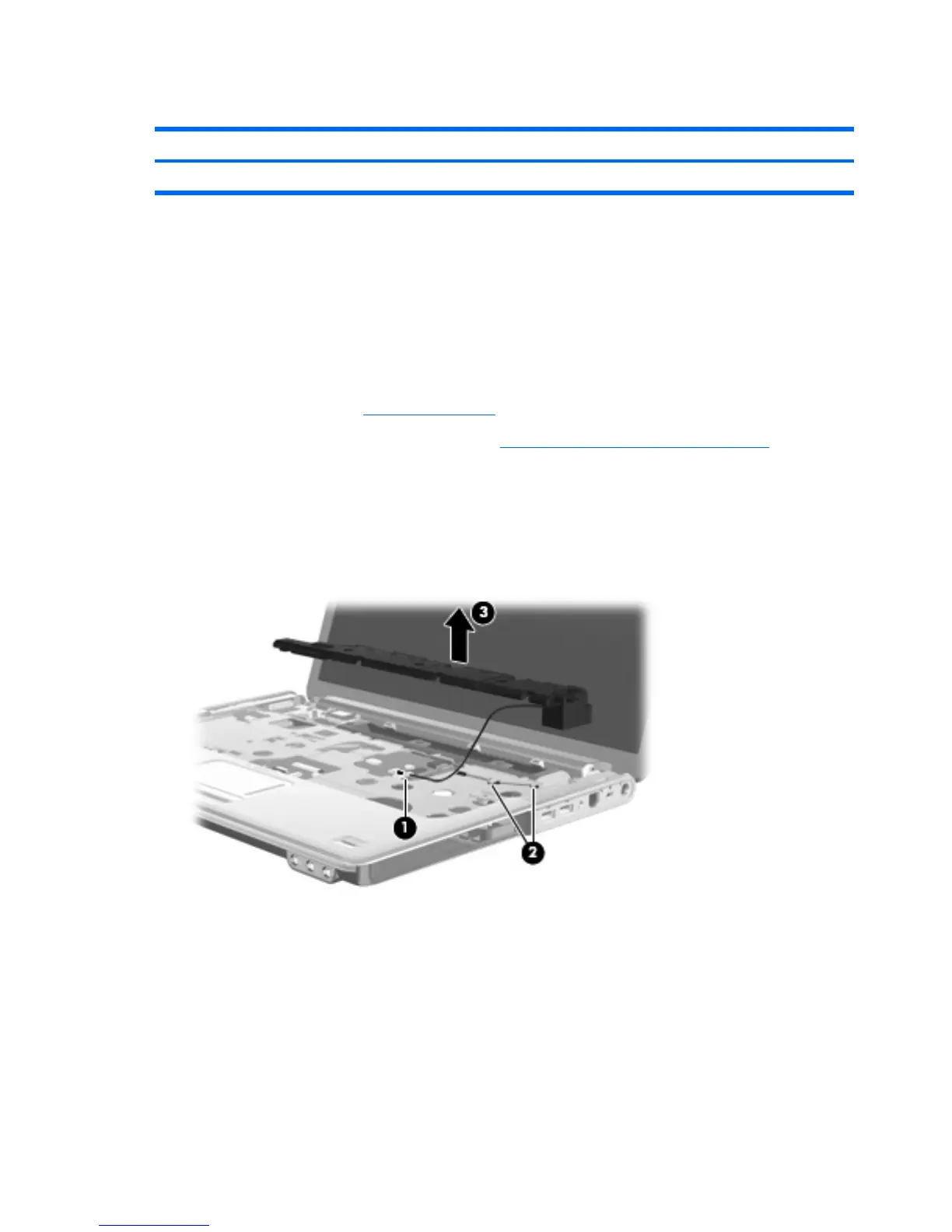

Remove the speaker assembly:
1. Disconnect the speaker assembly cable (1) from the system board.
2. Remove the speaker assembly cable from the clips (2) in the top cover.
3. Remove the speaker assembly (3).
Reverse this procedure to install the speaker assembly.
74 Chapter 4 Removal and replacement procedures
