Bluetooth module
NOTE: The Bluetooth module spare part kits do not include a Bluetooth module cable. The Bluetooth
module cable is available using spare part number 489822-001.
Description Spare part number
For use only with computer models equipped with AMD processors 412766-002
For use only with computer models equipped with Intel processors 483113-001
Before removing the Bluetooth module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC Adapter from the computer.
4. Remove the battery (see
Battery on page 52).
5. Remove the switch cover and keyboard (see
Switch cover and keyboard on page 69).
6. Remove the speaker assembly (see
Speaker assembly on page 74).

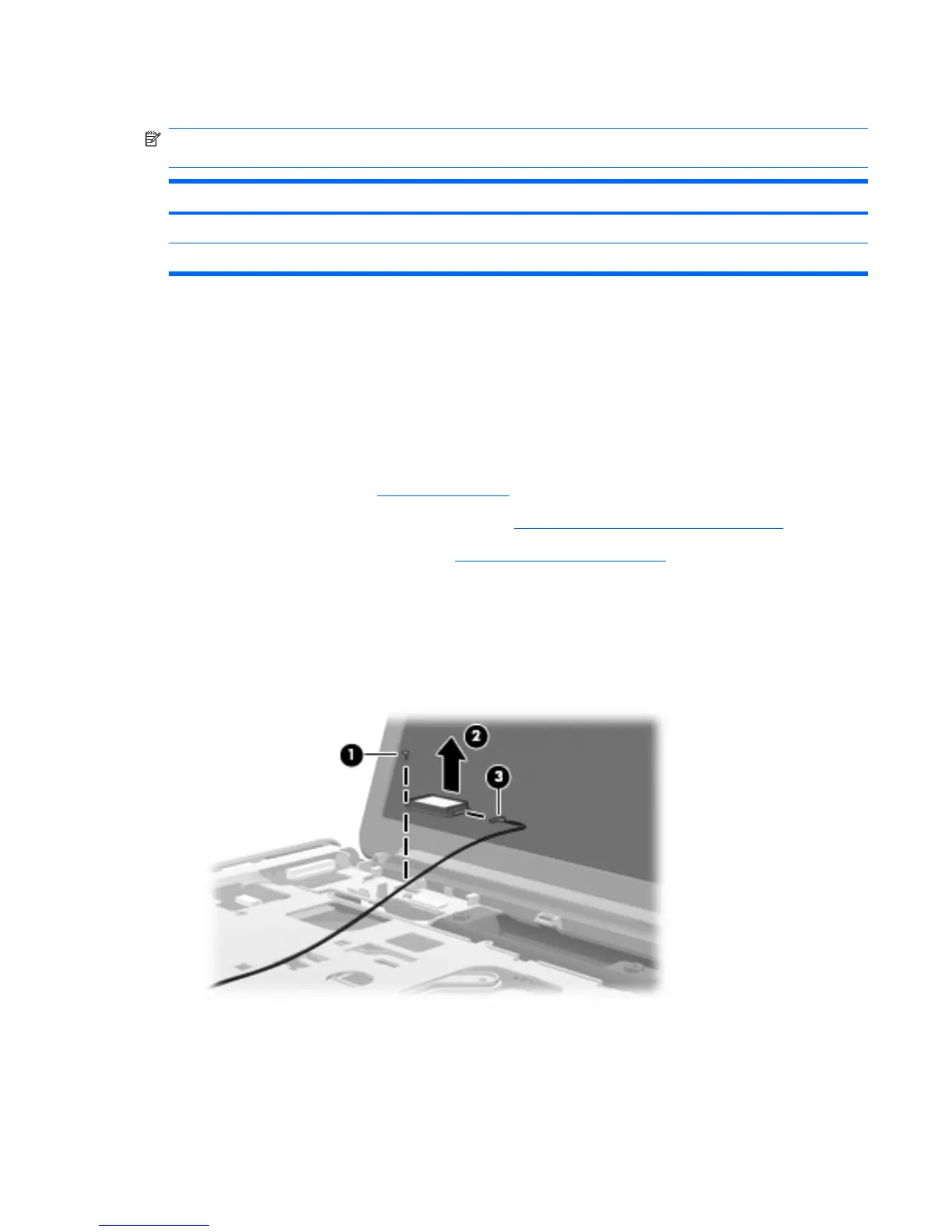

Remove the Bluetooth module:
1. Remove the Phillips PM2.0×4.0 screw (1) that secures the Bluetooth module to the top cover.
2. Release the Bluetooth module (2) as far from the top cover as the Bluetooth module cable allows.
3. Disconnect the Bluetooth module cable (3) from the Bluetooth module.
4. Remove the Bluetooth module.
Reverse this procedure to install the Bluetooth module.
Component replacement procedures 75
