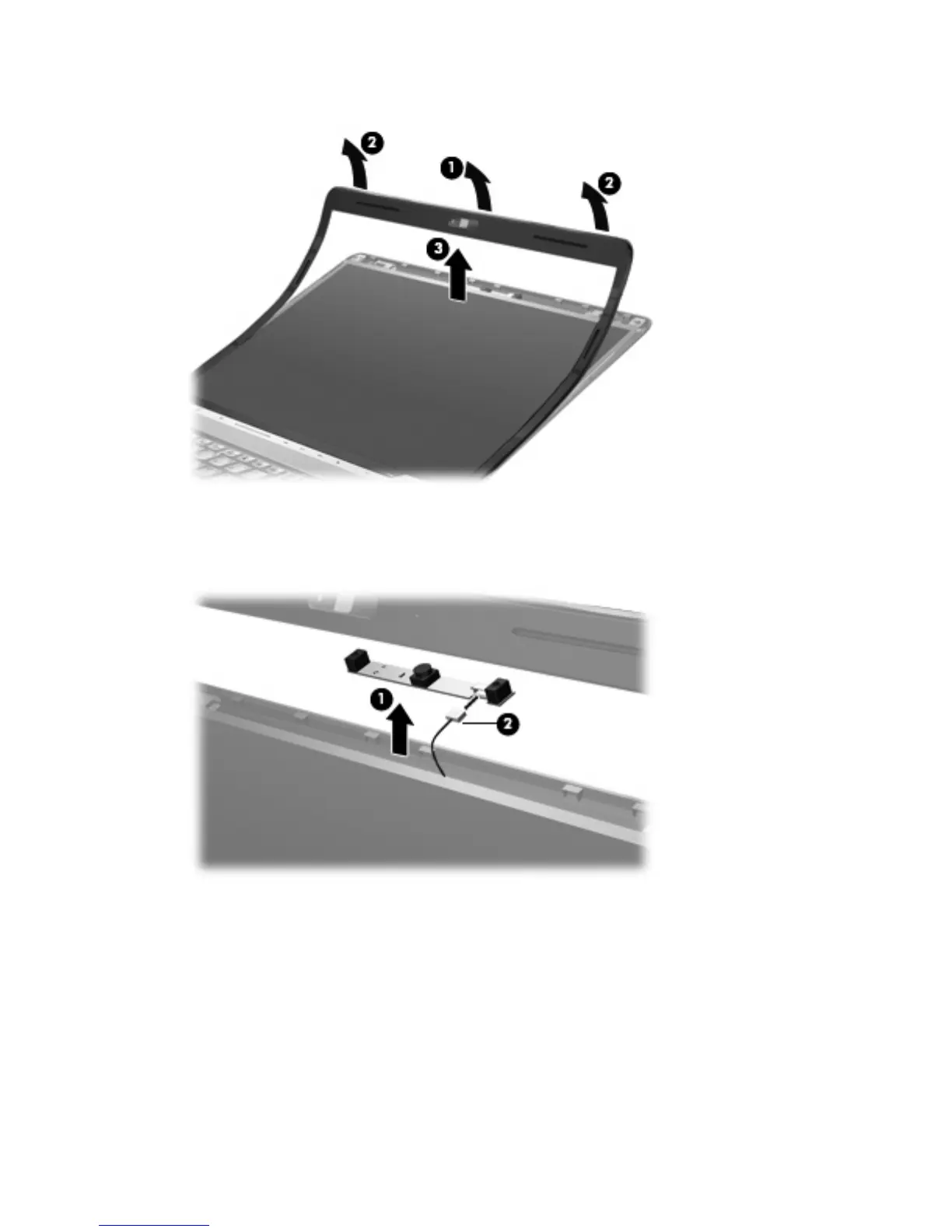

4. Release the display bezel top edge (3) from the display enclosure.

5. Release the webcam/microphone module (1) from the display enclosure as far as the webcam/

microphone module cable allows.

6. Disconnect the webcam/microphone module cable (2) from the webcam/microphone module.

7. Remove the webcam/microphone module.

Reverse this procedure to install the webcam/microphone module.

54 Chapter 4 Removal and replacement procedures
