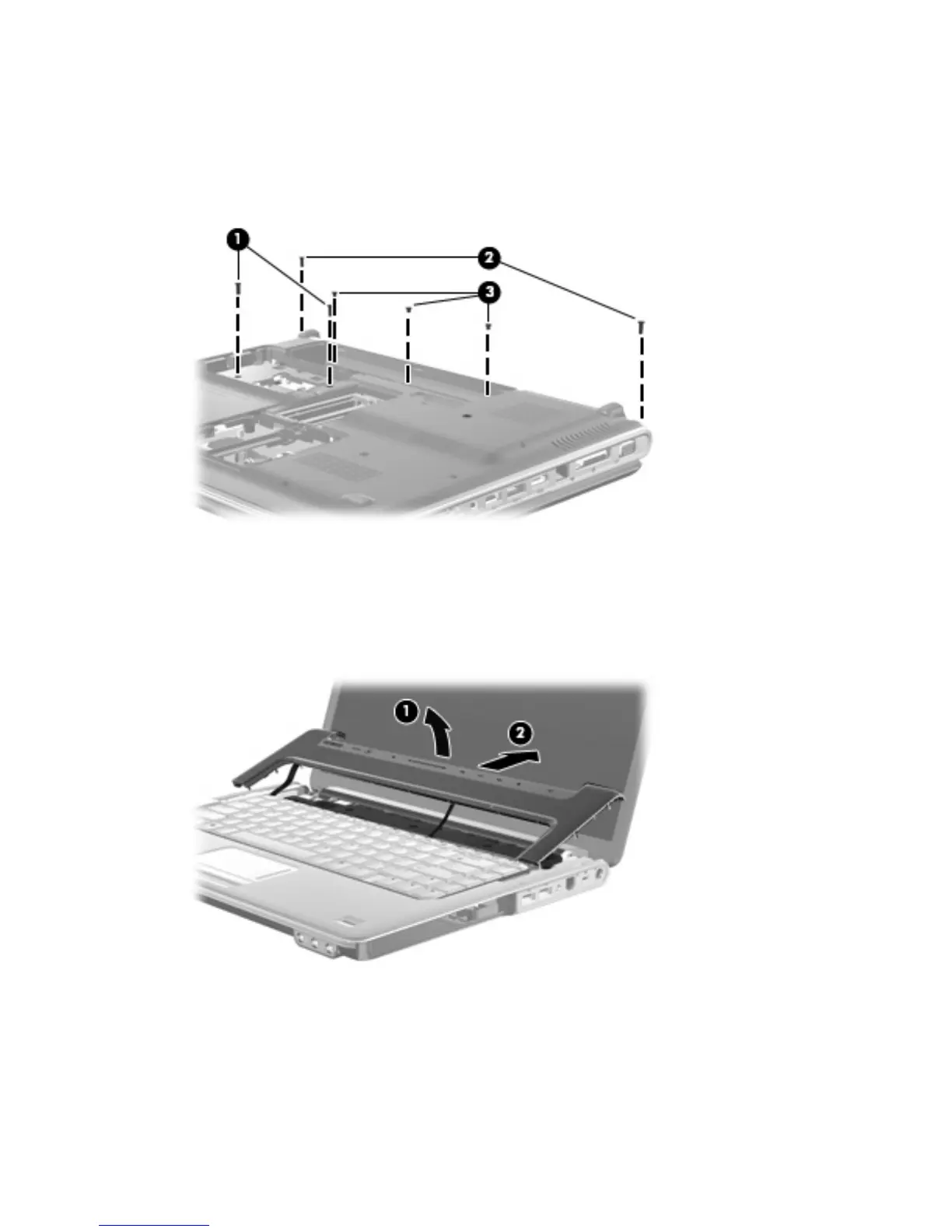

2. Remove the following screws:
(1) Two Phillips PM2.5×7.0 screws that secure the keyboard to the computer
(2) Two Phillips PM2.5×7.0 screws that secure the switch cover to the computer
(3) Three Phillips PM2.0×4.0 screws that secure the switch cover to the computer
3. Turn the computer display-side up, with the front toward you.
4. Open the computer as far as possible.
5. Lift the rear edge of the switch cover (1) until it detaches from the computer.
6. Slide the switch cover (2) back until it rests on the display.
70 Chapter 4 Removal and replacement procedures
