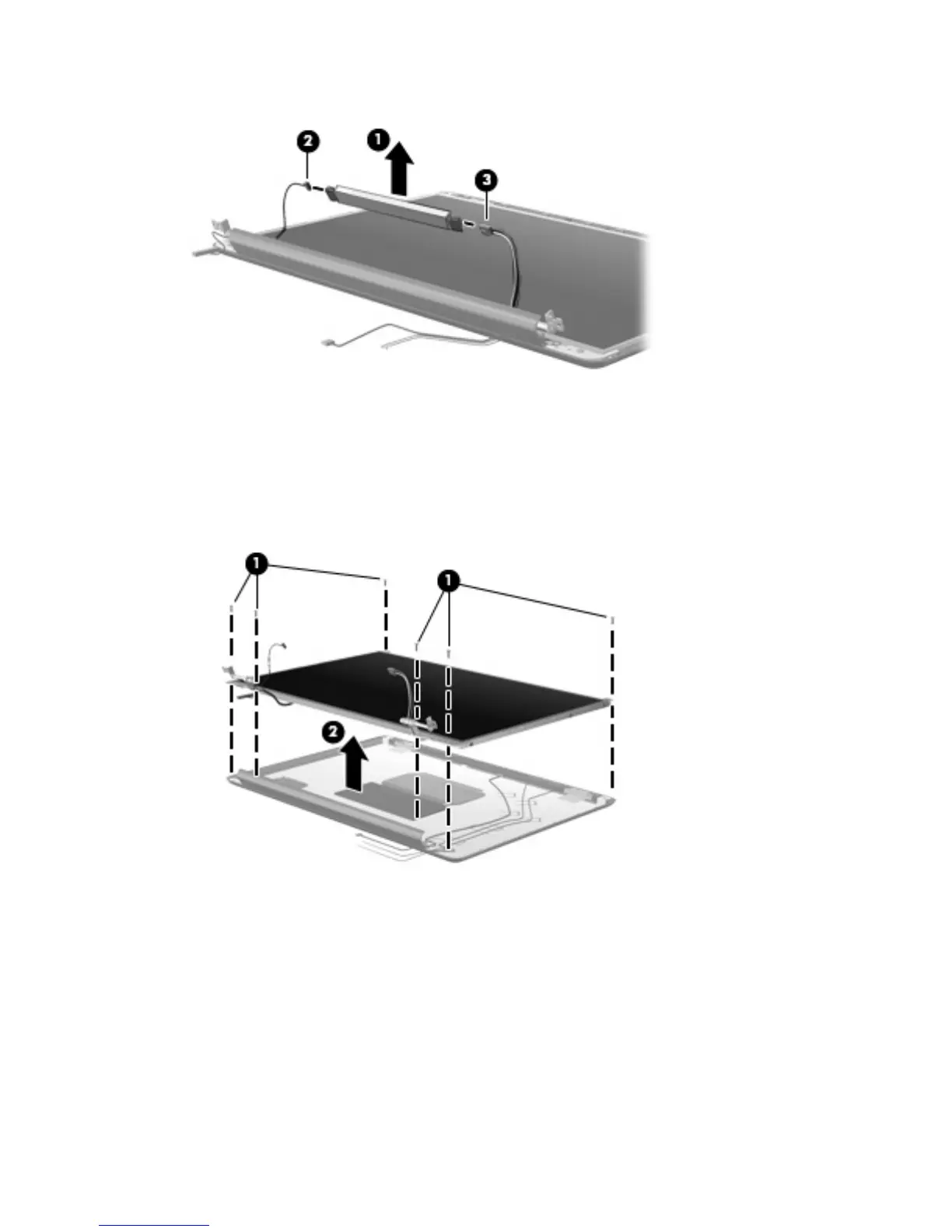

26. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.
27. Remove the display inverter. The display inverter is available using spare part number
488317-001.
28. If it is necessary to replace the display panel, remove the six Phillips PM2.5×4.0 screws (1) that
secure the display panel to the display enclosure.
29. Remove the display panel (2). Display panels are available using spare part numbers 484363-001
(WSXGA+ BrightView display panel) and 484364-001 (WXGA BrightView display panel).
30. If it is necessary to replace the display hinges, remove the six Phillips PM2.0×4.0 screws (1) that
secure each display hinge to the display panel.
82 Chapter 4 Removal and replacement procedures
