Removal and Replacement Procedures
Maintenance and Service Guide 5–25
8. Release the zero insertion force (ZIF) connector 1 to which
the LED board cable is connected and disconnect the cable 2
from the LED board.
9. Remove the switch cover.

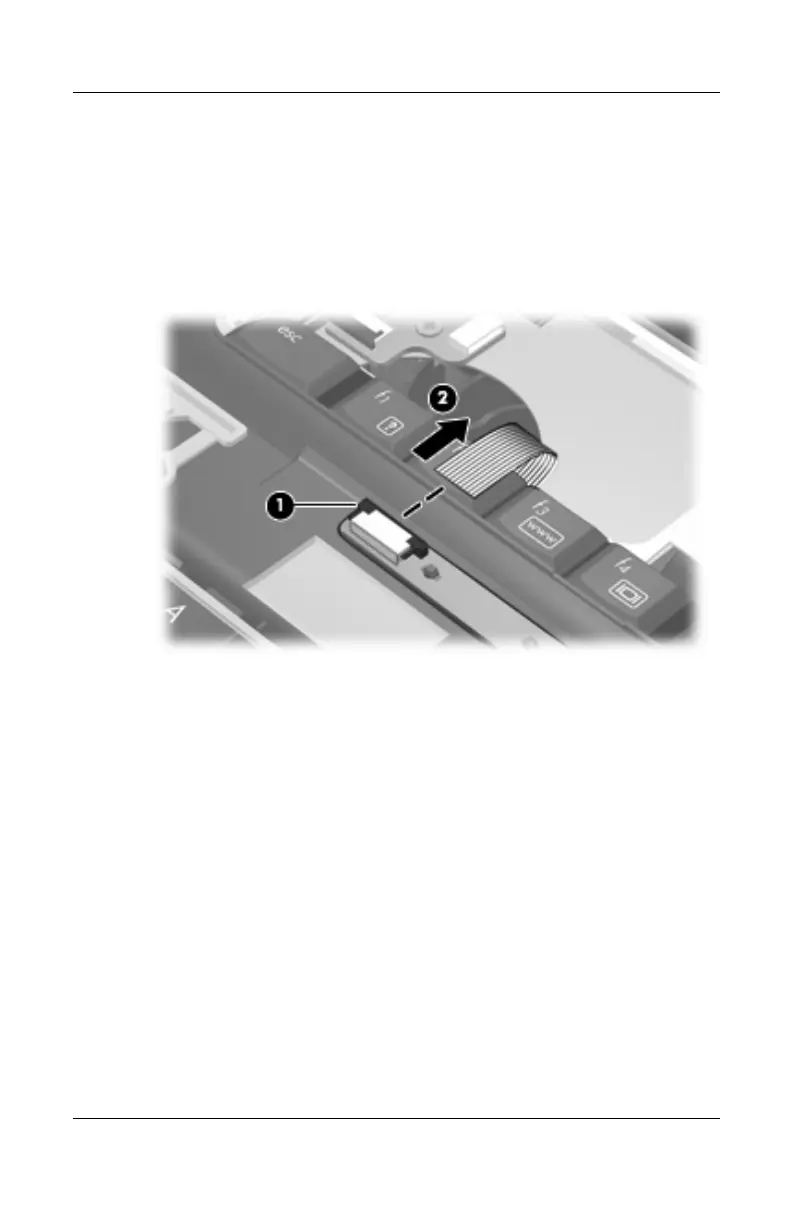

Disconnecting the LED Board Cable
Reverse the above procedure to install the switch cover.
