21.

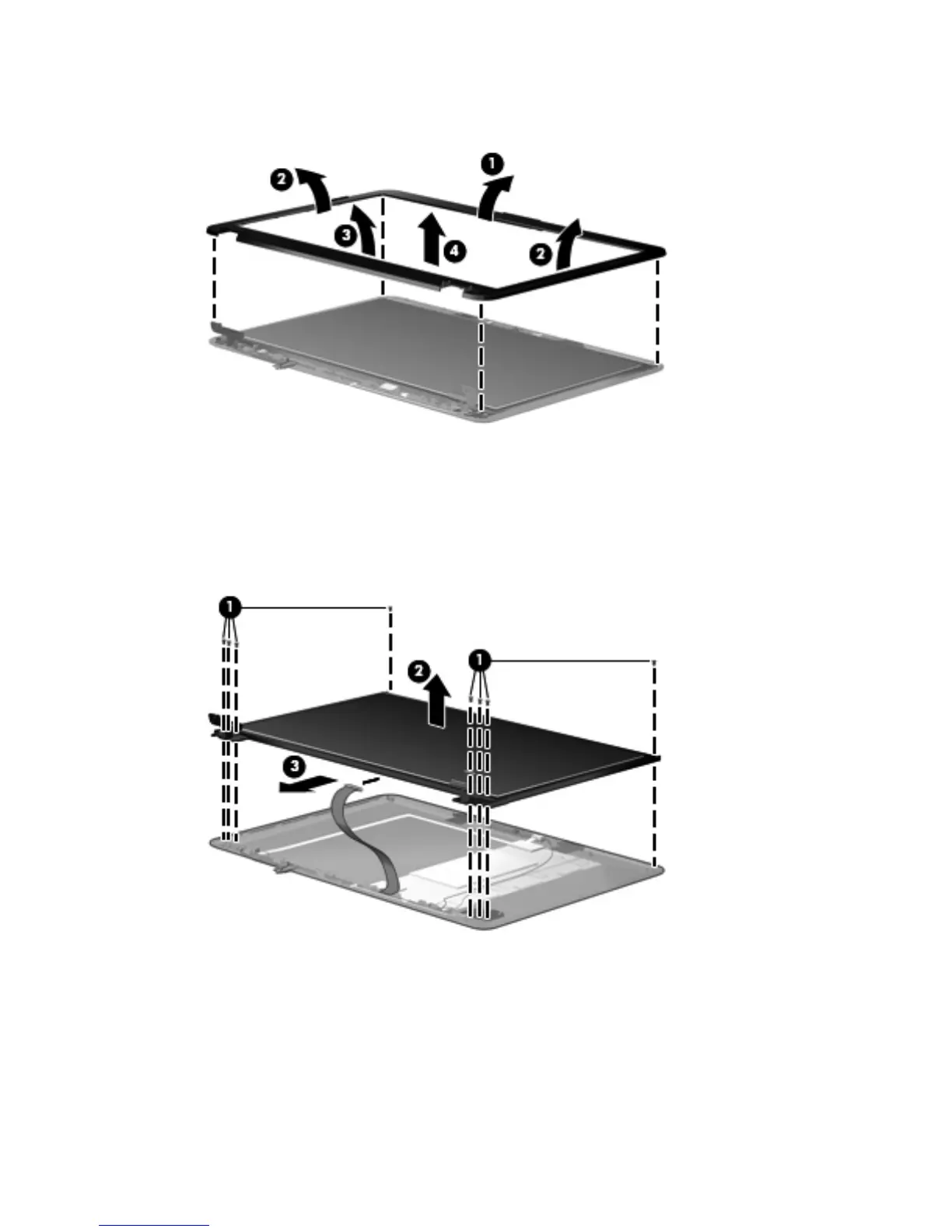

Remove the display bezel (4). The display bezel is available using the spare part number
605340-001 for silver computer models or 615442-001 all other computer models.
22.
If it is necessary to replace the display panel, remove the two Phillips PM2.5×5.0 screws from the
top corners and the six Phillips PM2.5×5.0 screws (1) from the display hinges.
23. Lift the top of the display panel (2) upward and release the display hinges.
24. Disconnect the display panel cable (3) from the back of the panel. The display panel is available
using spare part number 605337-001.
25.
If it is necessary to replace the display hinges, remove the two Phillips PM2.0×3.0 screws (1) that
secure each display hinge to the display panel.
ENWW
Component replacement procedures
75
