26.

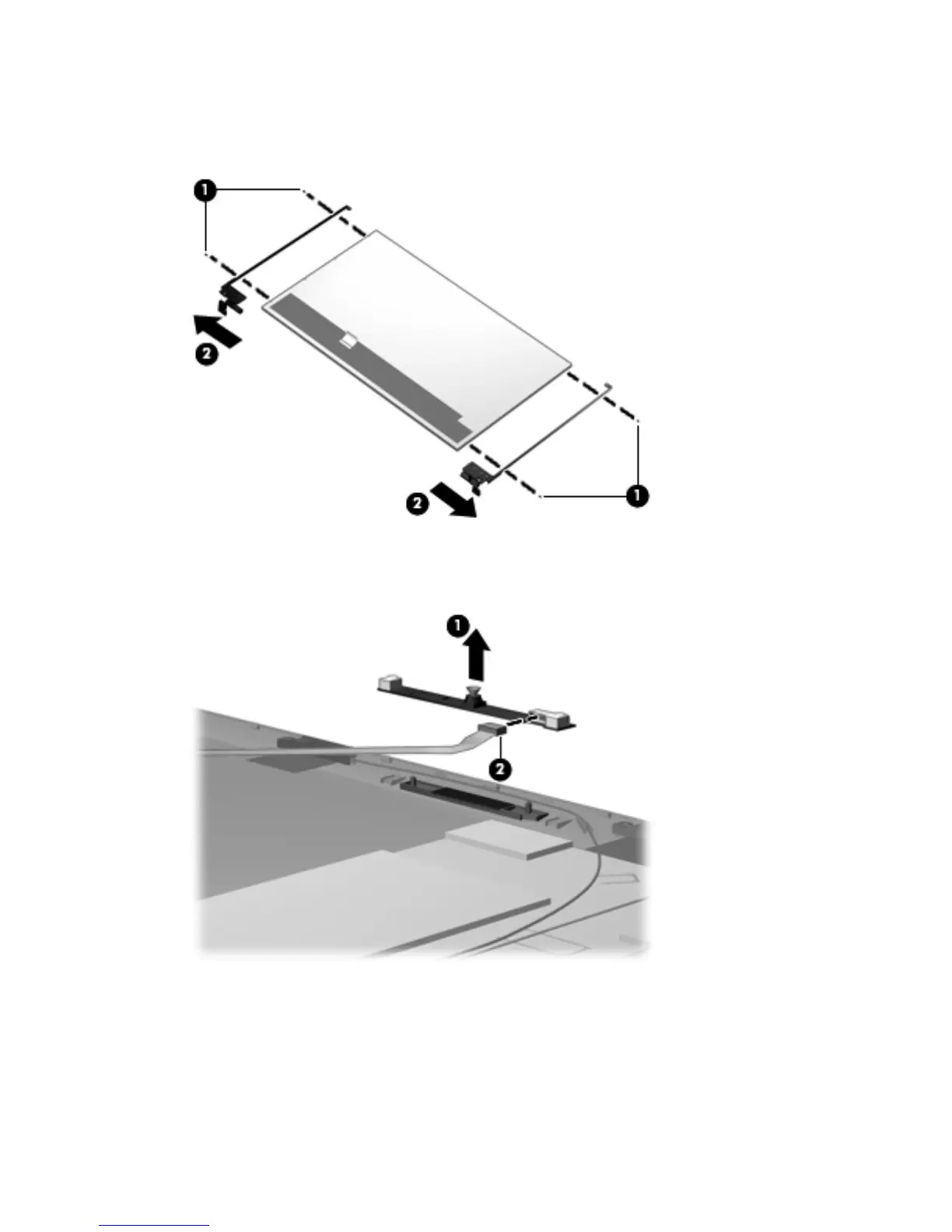

Remove the display hinges (2). The display hinges are available in the Display Hinge Kit, spare
part 605342-001. The display hinge screws are available in the Display Screw Kit, spare part
number 605332-001.
27. If it is necessary to remove the webcam/microphone module, lift the module (1) and then
disconnect the module cable (2). The webcam/microphone module is available using spare part
number 603660-001.
76 Chapter 4 Removal and replacement procedures ENWW
