10.

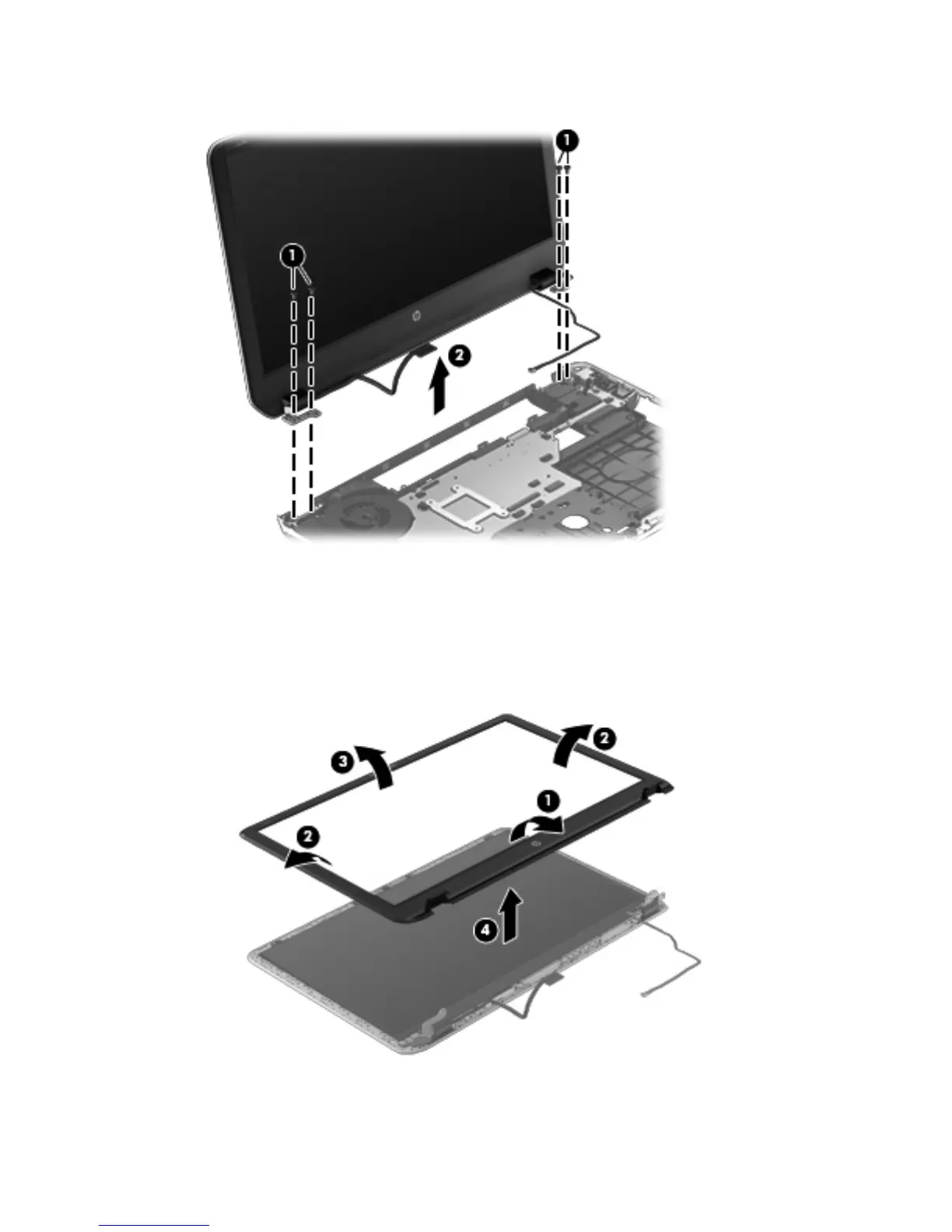

Remove the display assembly (2).
11. If it is necessary to replace the display bezel or any of the display assembly subcomponents:
a. Flex the inside edges of the bottom edge (1), the left and right sides (2), and the
top edge (3) of the display bezel until the bezel disengages from the display enclosure.
b. Remove the display bezel (4). The display bezel is available using spare part number
686897-001.
Component replacement procedures
95
