HP Pavilion MX703/M703 Monitor Guide
7
To place the two-speaker system
If you are not using the brackets for the speakers,
position the speakers and continue with
“To connect the two-speaker system.”

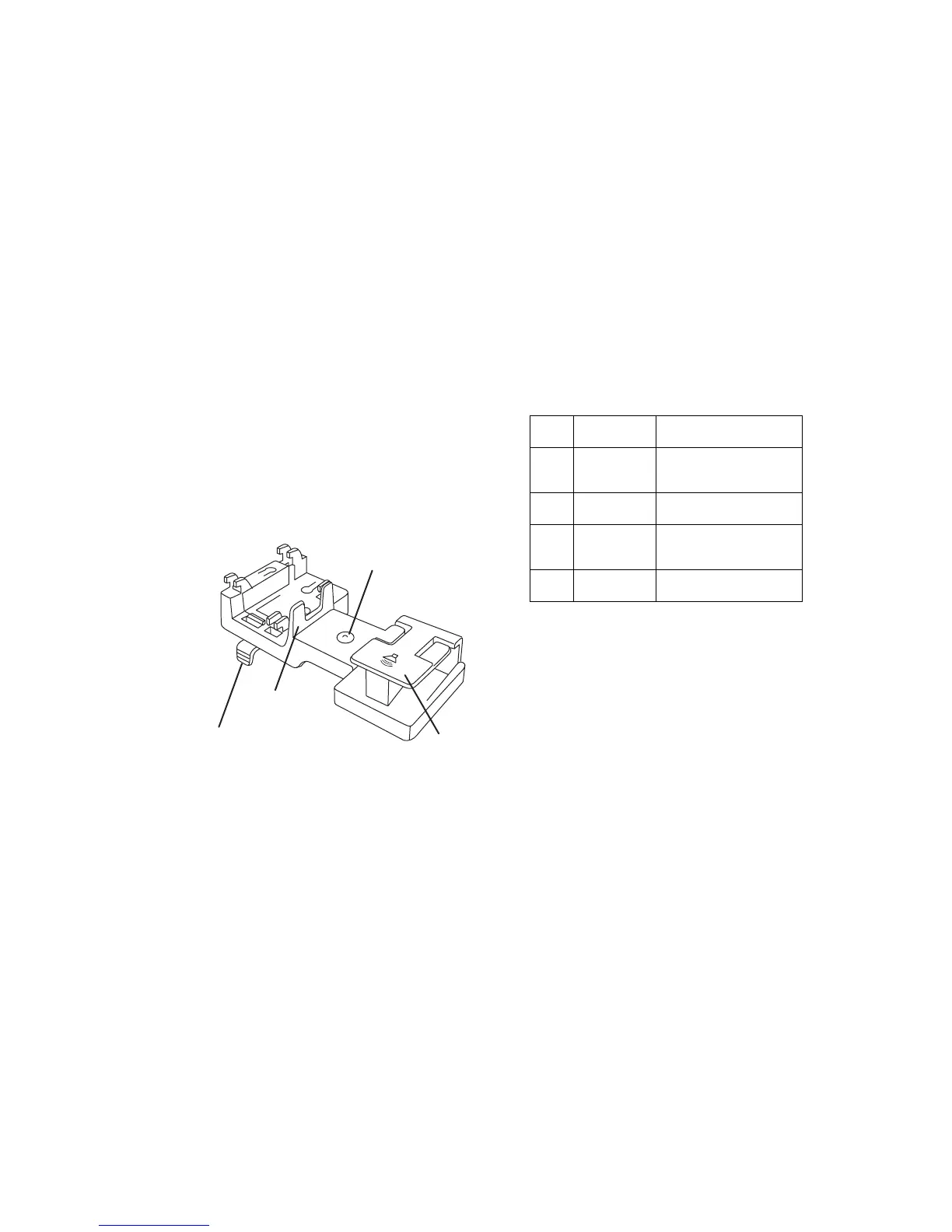

1 Locate the left and the right speaker brackets
(see H).
J
K
H
L
Item Speaker
bracket
Purpose
H Circled-R or
circled-L
Identifies bracket for left
side (circled-L) or right
side (circled-R) of monitor
J Release tab Releases bracket from
bottom of monitor
K High ridge Is flush with outside of
monitor when bracket is
installed
L Speaker
mount
Holds speaker
2 Locate the slots underneath and on both sides
of the monitor. Do not lift or tip the monitor.
