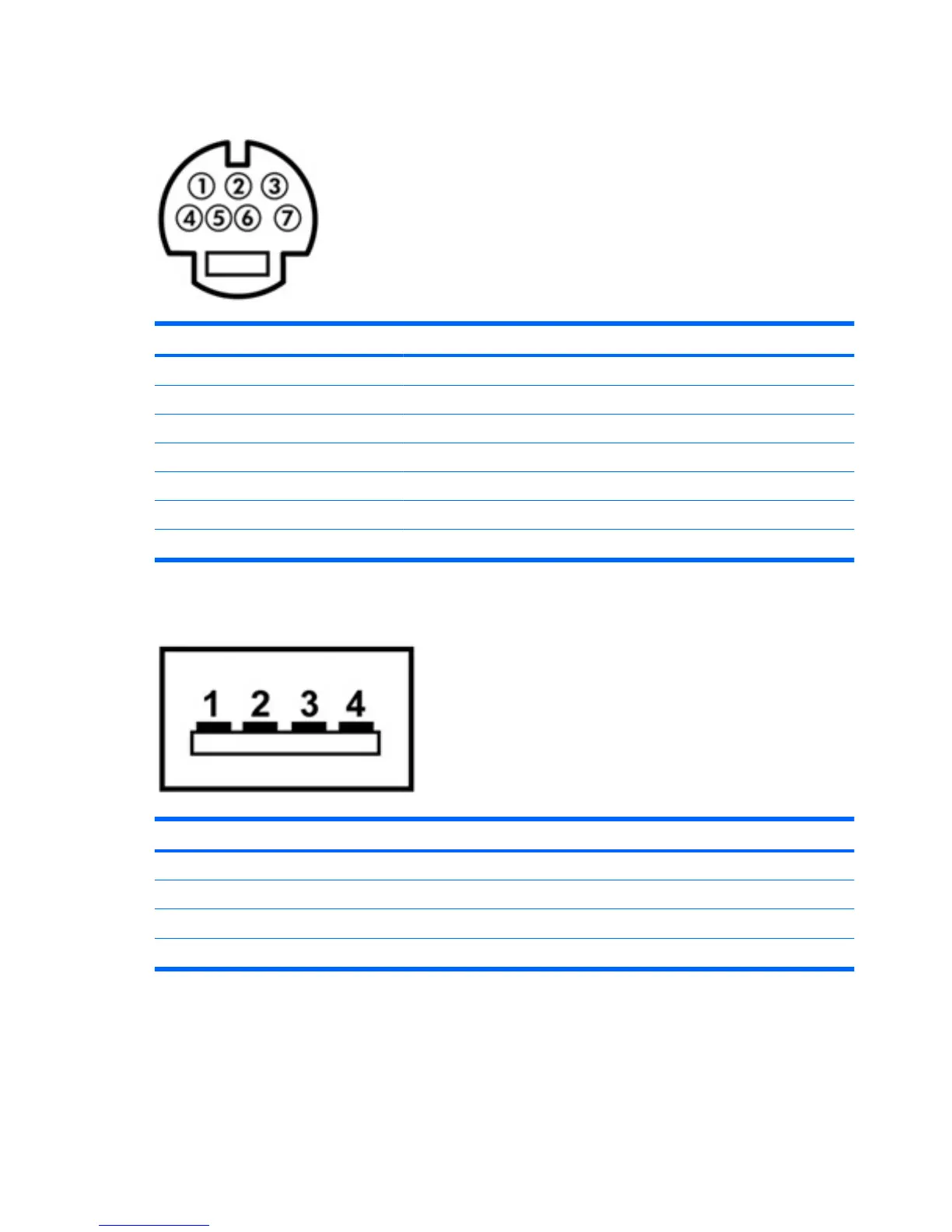

S-Video-out
Pin Signal
1 S-VHS color (C) signal
2 Composite video signal
3 S-VHS intensity (Y) signal
4 S-VHS color ground
5 TV-CD
6 S-VHS intensity ground
7 Composite video ground
Universal Serial Bus
Pin Signal
1 +5 VDC
2 Data -
3 Data +
4Ground
114 Chapter 10 Connector pin assignments ENWW
