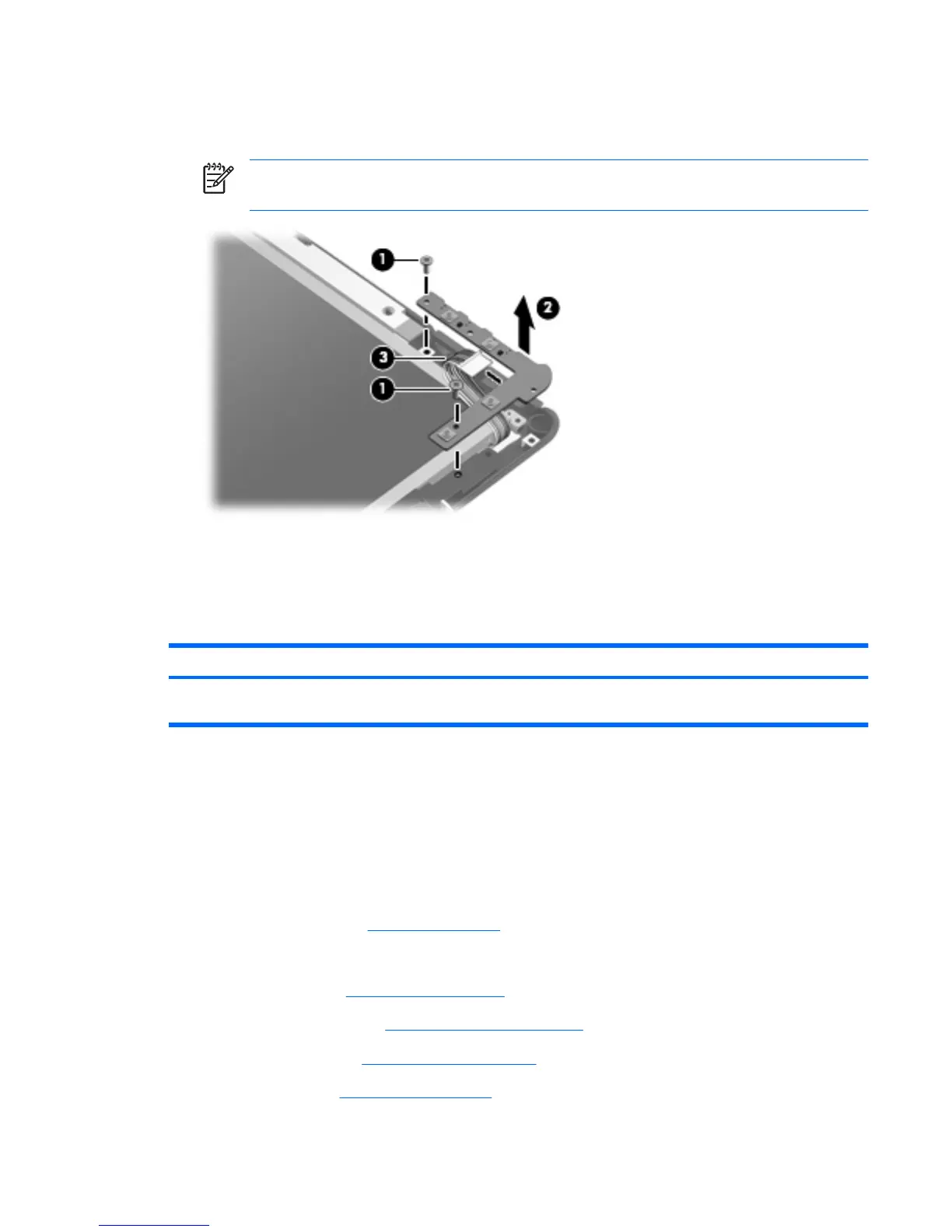

32. Release the display QuickPlay board (2) as far as the display QuickPlay board cable will allow.
33. Disconnect the display QuickPlay board cable (3) from the display QuickPlay board.
NOTE: The display QuickPlay board is available in using spare part number
441122-001.
34.
Remove the display QuickPlay board from the display enclosure.
Reverse this procedure to reassemble and install the display assembly.
Top cover
Description Spare part number
Top cover (includes TouchPad and TouchPad cable, caps lock light board and cable, and
top cover bumper pads)
441134-001
Before removing the top cover, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power cord.
4.
Remove the battery (see
Battery on page 36).
5.
Remove the following components:
a.
Hard drive (see
Hard drive on page 38)
b.
WWAN module (see
WWAN module on page 40)
c.
Optical drive (see
Optical drive on page 42)
d.
Keyboard (see
Keyboard on page 47)
ENWW Component replacement procedures 59
