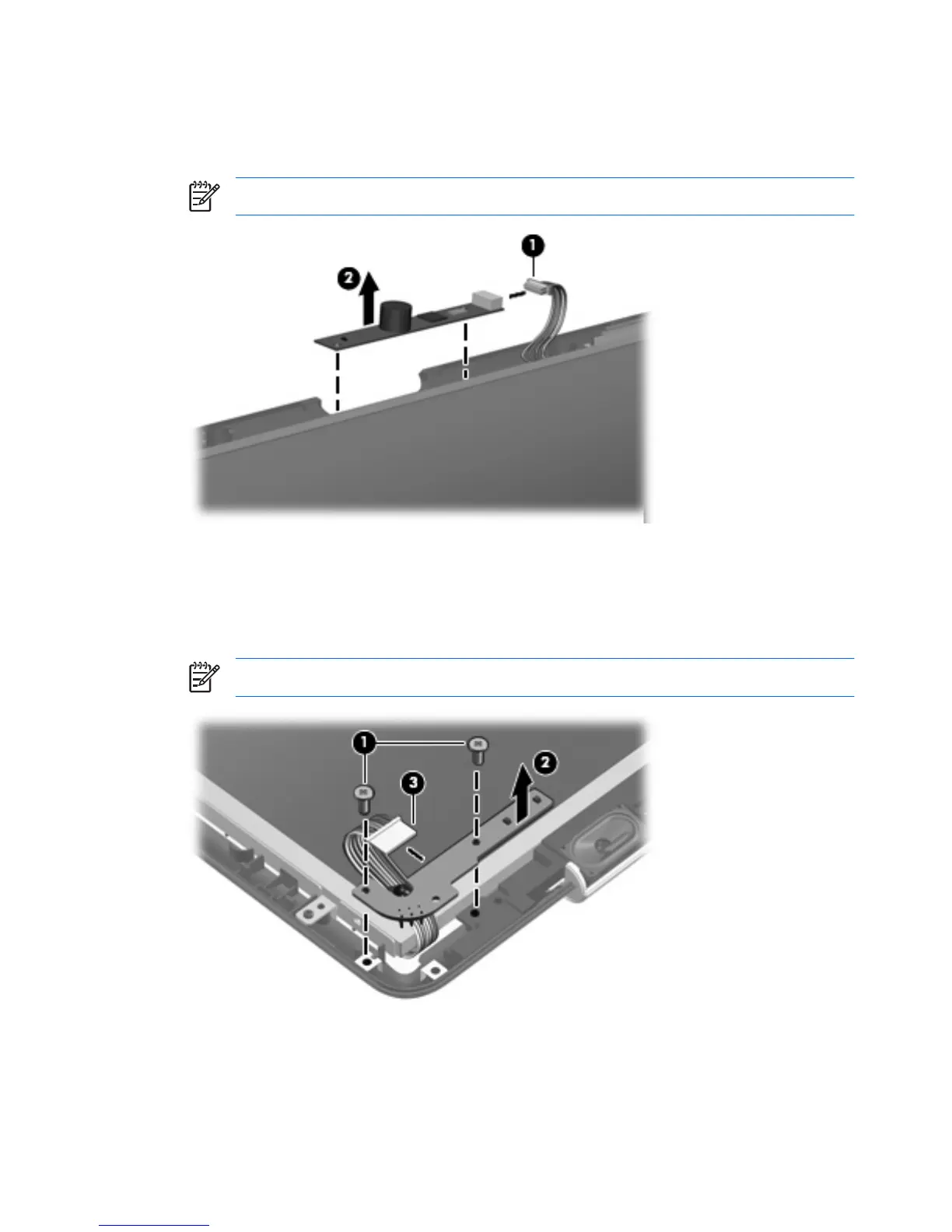

25. If it is necessary to replace the Web camera, disconnect the camera cable (1) from the camera
module.
26. Remove the camera module (2) from the display enclosure.
NOTE: The Web camera is available using spare part number 441120-001.
27. If it is necessary to replace the display LED board, remove the two Phillips PM2.0×4.0 screws (1)
that secure the display LED board to the to the display enclosure.
28. Release the display LED board (2) as far as the display LED board cable will allow.
29. Disconnect the display LED board cable (3) from the display LED board.
NOTE: The display LED board is available using spare part number 441123-001.
30.
Remove the display LED board from the display enclosure.
31.
If it is necessary to replace the display QuickPlay board, remove the two Phillips PM2.0×4.0 screws
(1) that secure the display QuickPlay board to the display enclosure.
58 Chapter 5 Removal and replacement procedures ENWW
