HP Pavilion TX1000Z User Manual

e.
Switch cover (see
Switch cover on page 50)
f.
Display assembly (see
Display assembly on page 52)

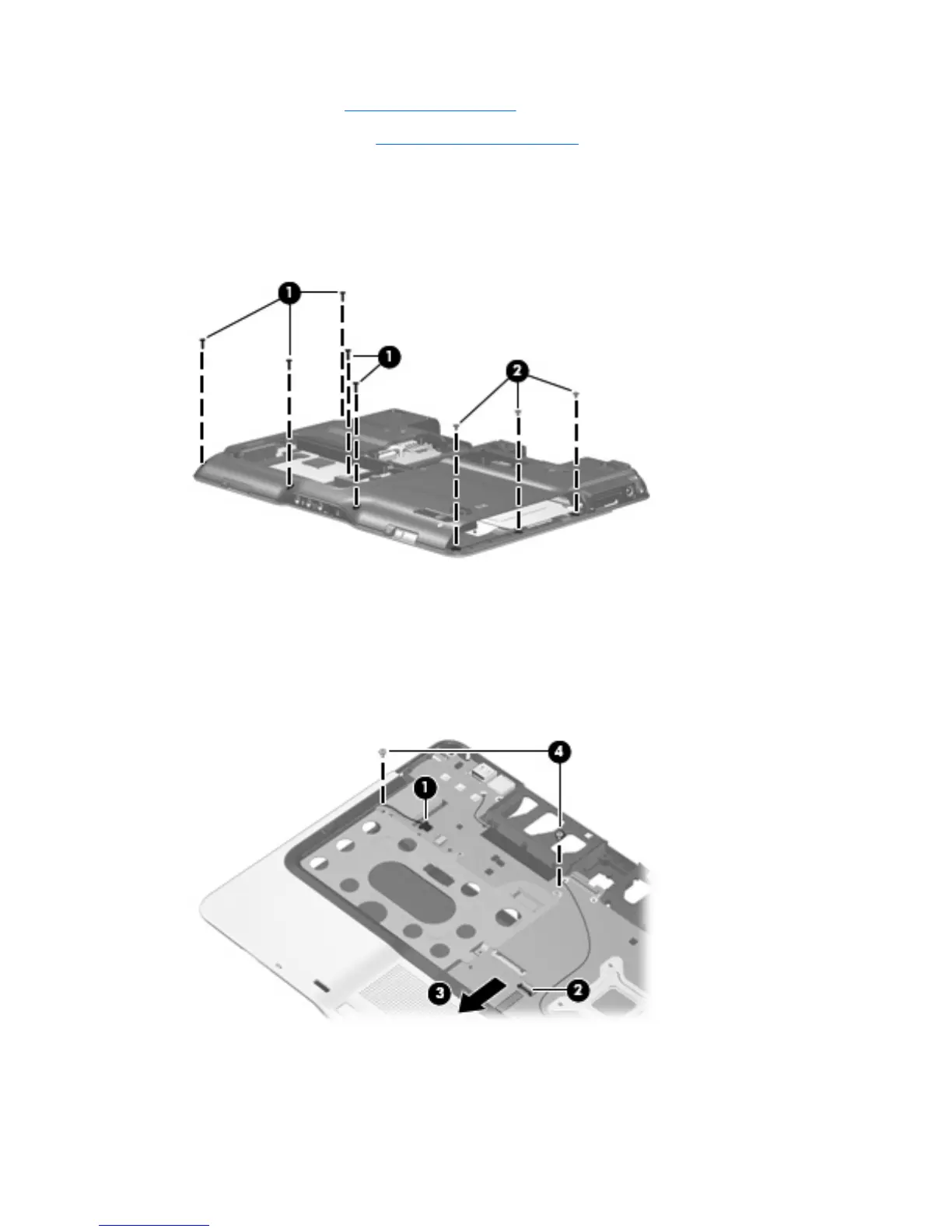

Remove the top cover:
1.
Turn the computer upside down, with the front toward you.
2. Remove the five Phillips PM2.0×7.0 screws (1) and the three Phillips PM2.0×4.0 screws (2) that
secure the top cover to the computer.
3.
Turn the computer right-side up, with the front toward you.
4. Disconnect the display lid switch board cable (1) from the system board.
5. Release the ZIF connector (2) to which the TouchPad cable is connected and disconnect the TouchPad
cable (3).
6. Remove the two Phillips PM2.0×5.0 screws (4) that secure the top cover to the base enclosure.
60 Chapter 5 Removal and replacement procedures ENWW
