Remove the WLAN module:
1.
Position the computer with the front toward you.

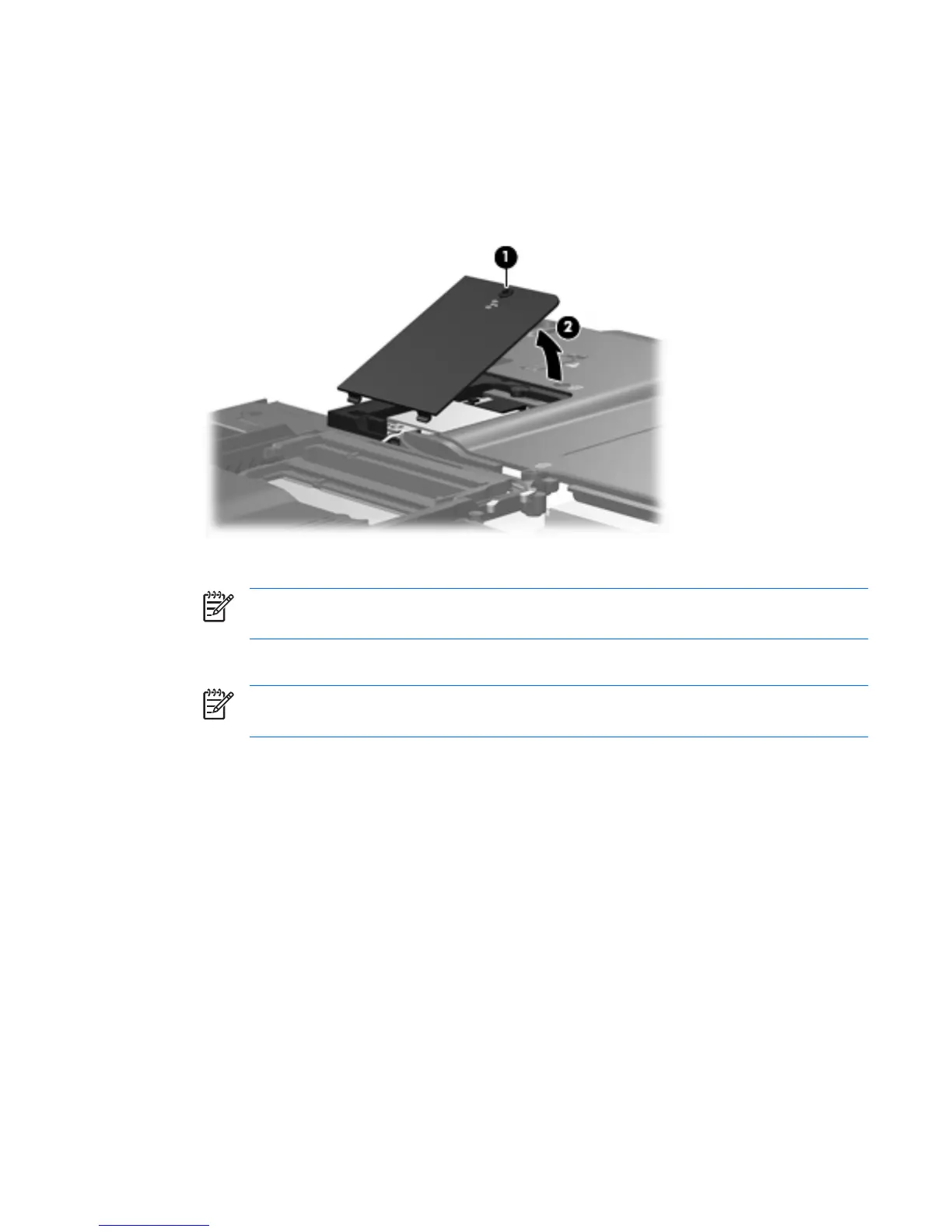

2. Loosen the Phillips PM2.0×4.0 screw (1) that secures the WLAN module compartment cover to the
computer.
3. Lift the right side of the WLAN module compartment cover (2) and swing it to the left.
4.
Remove the WLAN module compartment cover.
NOTE: The WLAN module compartment cover is included in the Plastics Kit, spare part
number 441138-001.
5. Disconnect the WLAN antenna cables (1) from the WLAN module.
NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal.
The white WLAN antenna cable is connected to the WLAN module “Aux” terminal.
6. Remove the two Phillips PM2.0×4.0 screws (2) that secure the WLAN module to the computer. (The
edge of the module opposite the socket rises away from the computer.)
ENWW Component replacement procedures 45
