HP Pavilion x360 Convertible PC - Page 44

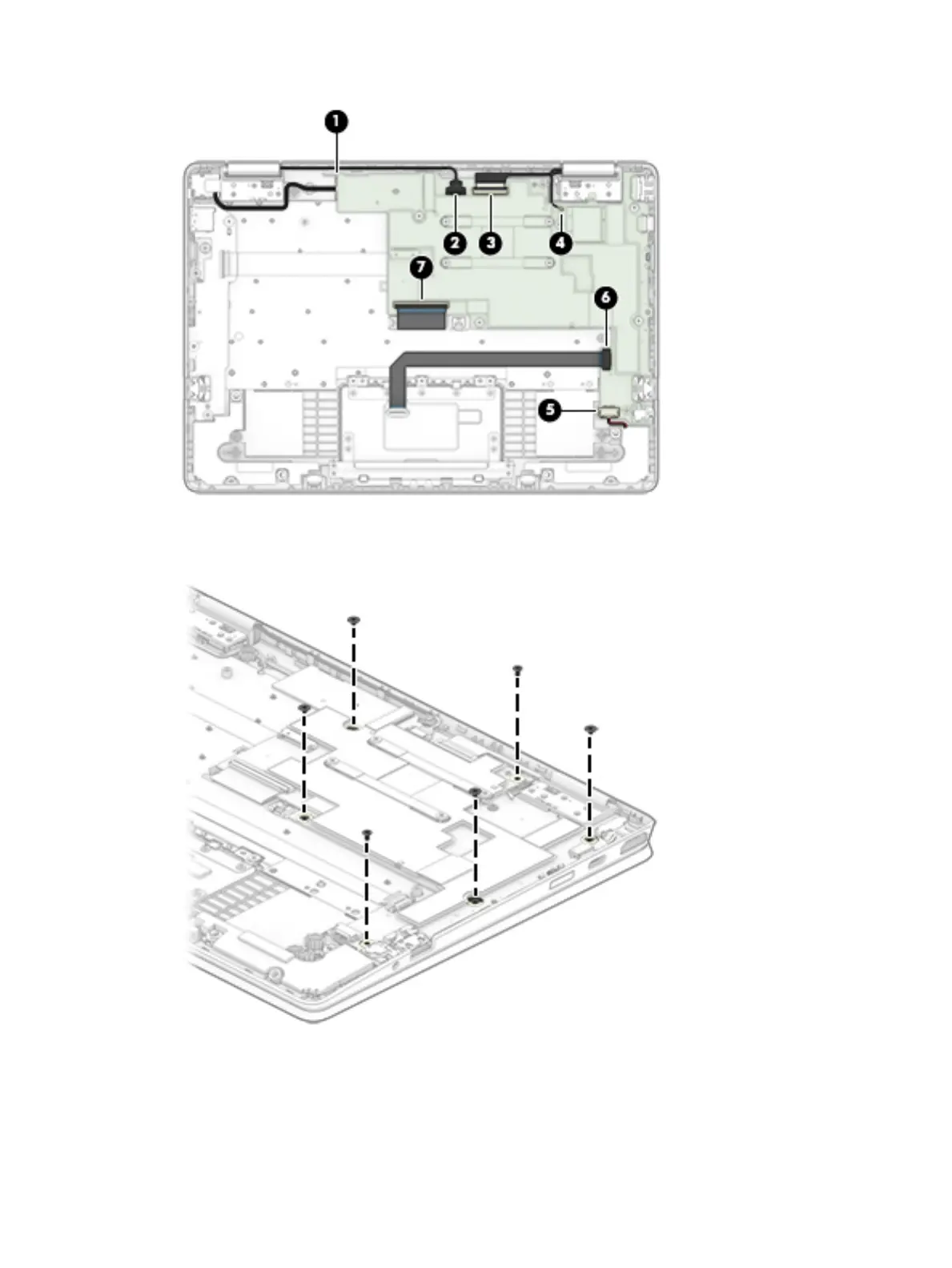

2. Remove the ve Phillips M2.0×2.2 broad head screws that secure the system board to the keyboard/
top cover.
3. Lift the left side of the system board (1) until it rests at an angle.
36 Chapter 5 Removal and replacement procedures
