Display assembly
NOTE: The display assembly is spared at the subcomponent level. For display assembly spare part information,
see the individual removal subsections.
Before removing the display assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 23).
5. Disconnect the battery cable from the system board (see Battery on page 25).
6. Remove the solid-state drive (see Solid-state drive on page 29).
Remove the display assembly:

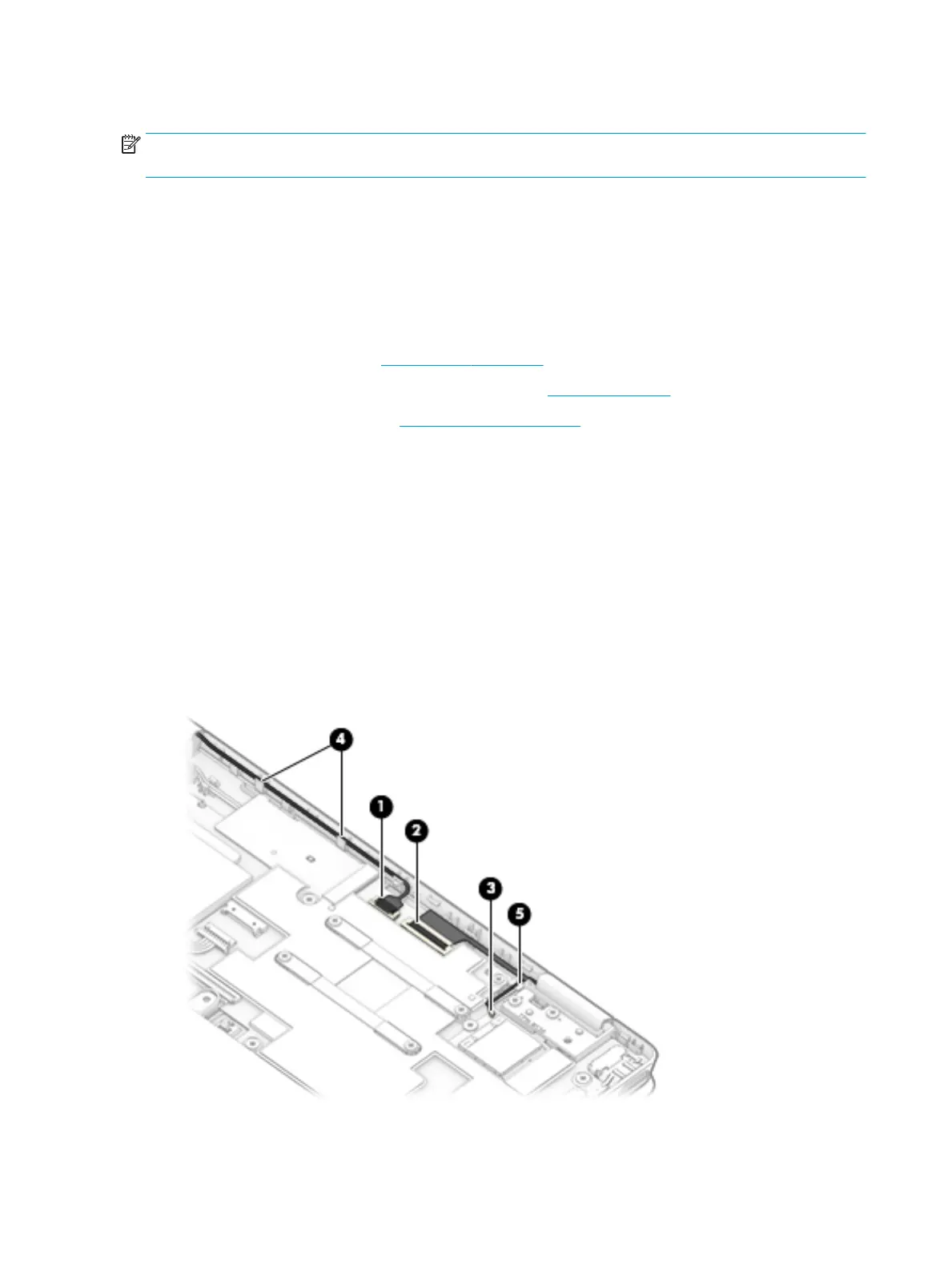

1. Release the ZIF connector (1) to which webcam/microphone module cable is connected, and then
disconnect the webcam/microphone module cable from the system board.
2. Release the ZIF connector (2) to which display panel cable is connected, and then disconnect the display
panel cable from the system board.
3. Disconnect the WLAN antenna cable (3) from the terminal on the WLAN module.
4. Release the webcam/microphone module cable from the retention clips (4) and routing channel built into
the keyboard/top cover.
5. Release the WLAN antenna cable from the retention clips (5) and routing channel built into the keyboard/
top cover.
42 Chapter 5 Removal and replacement procedures
