d. Remove the display bezel (7).
The display bezel is available using spare part number 809027-001.
2. To remove the webcam/microphone module:

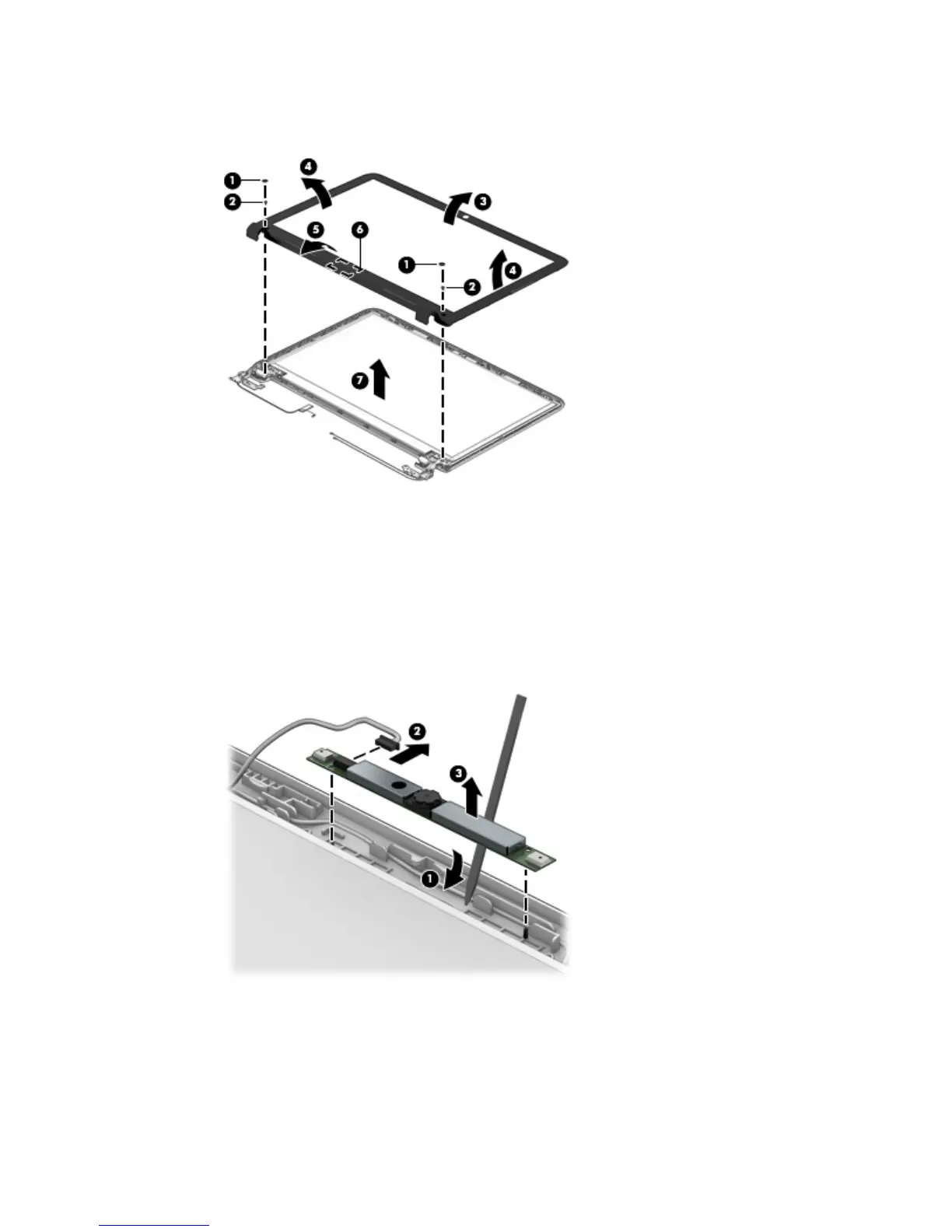

a. Position the display assembly with the top edge toward you.
b. Use a tool to pry the webcam and disengage the adhesive that secures it to the display (1).
c. Disconnect the cable (2) from the module.
d. Remove the webcam/microphone module from the display (3).
The webcam for non-touch models is available using spare part number 806758-001.
3. To remove the display panel:
a. Remove the four Phillips PM2.0×3.0 screws that secure the display panel to the enclosure (1).
58 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
