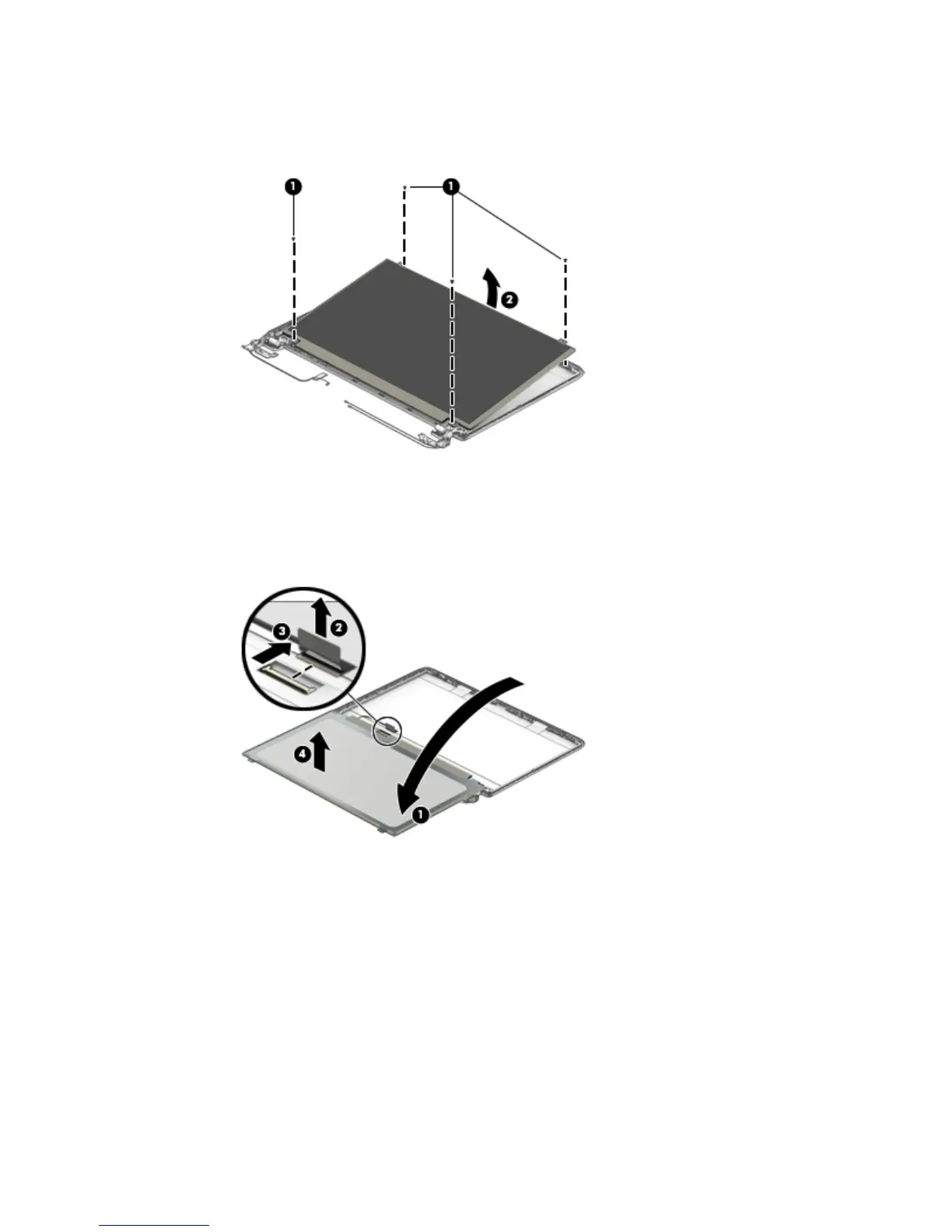

b. Lift the top of the panel (2).
Raw display panels are available using spare part number 809371-001 for BrightView HD panels
and 809372-01 for AntiGlare FHD panels.
c. Rotate the display panel until it is upside-down next to the display enclosure (1).
d. On the back of the display panel, release the adhesive strip (2) that secures the display panel cable
to the display panel, and then disconnect the cable (3).
e. Remove the display panel from the enclosure (4).
4. To remove the display hinges:
a. Remove the four Phillips PM2.0×3.0 screws (1) from the bottom of the hinges, and the two Phillips
PM2.0×3.0 screws (2) from the top of the hinges that secure the display hinges to
the display enclosure.
Component replacement procedures 59
