Rear Panel Components
HP Pro 3005/3085

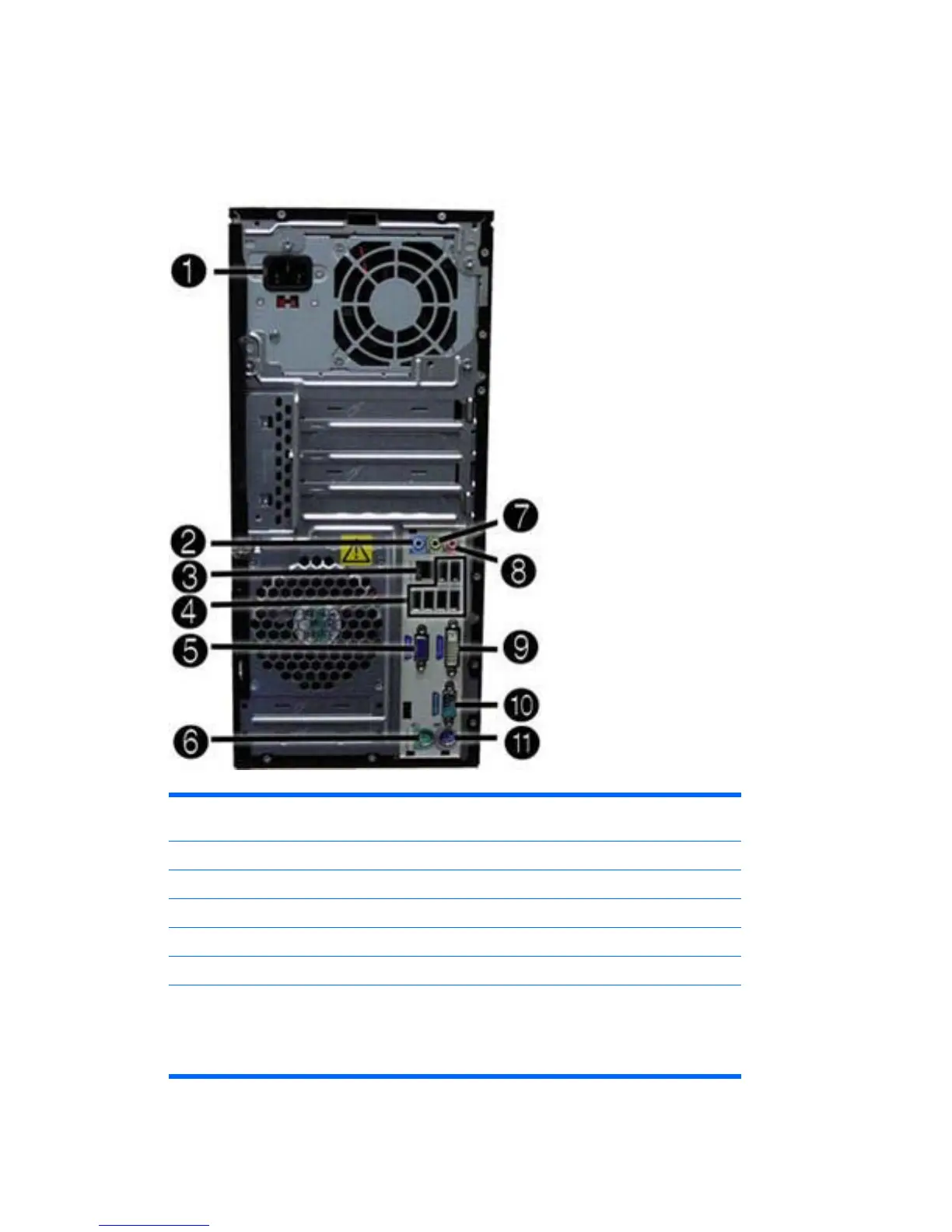

Figure 1-6 Rear Panel Components – HP Pro 3005/3085
Table 1-3 Rear Panel Components – HP Pro 3005/3085
1 Power Cord Connector 7 Line-Out Connector for powered audio
devices (green)
2 Line-In Audio Connector (blue) 8 Microphone Connector (pink)
3 RJ-45 Network Connector 9 DVI Connector
4 Universal Serial Bus (USB) Ports 10 Serial connector
5 VGA Monitor Connector 11 Keyboard PS/2 connector
6 Mouse PS/2 connector
NOTE: Arrangement and number of connectors may vary by model.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if
you want to use the connector for a line-in device or a microphone. You can reconfigure the
connector at any time by double-clicking the Realtek HD Audio Manager icon in the Windows taskbar.
