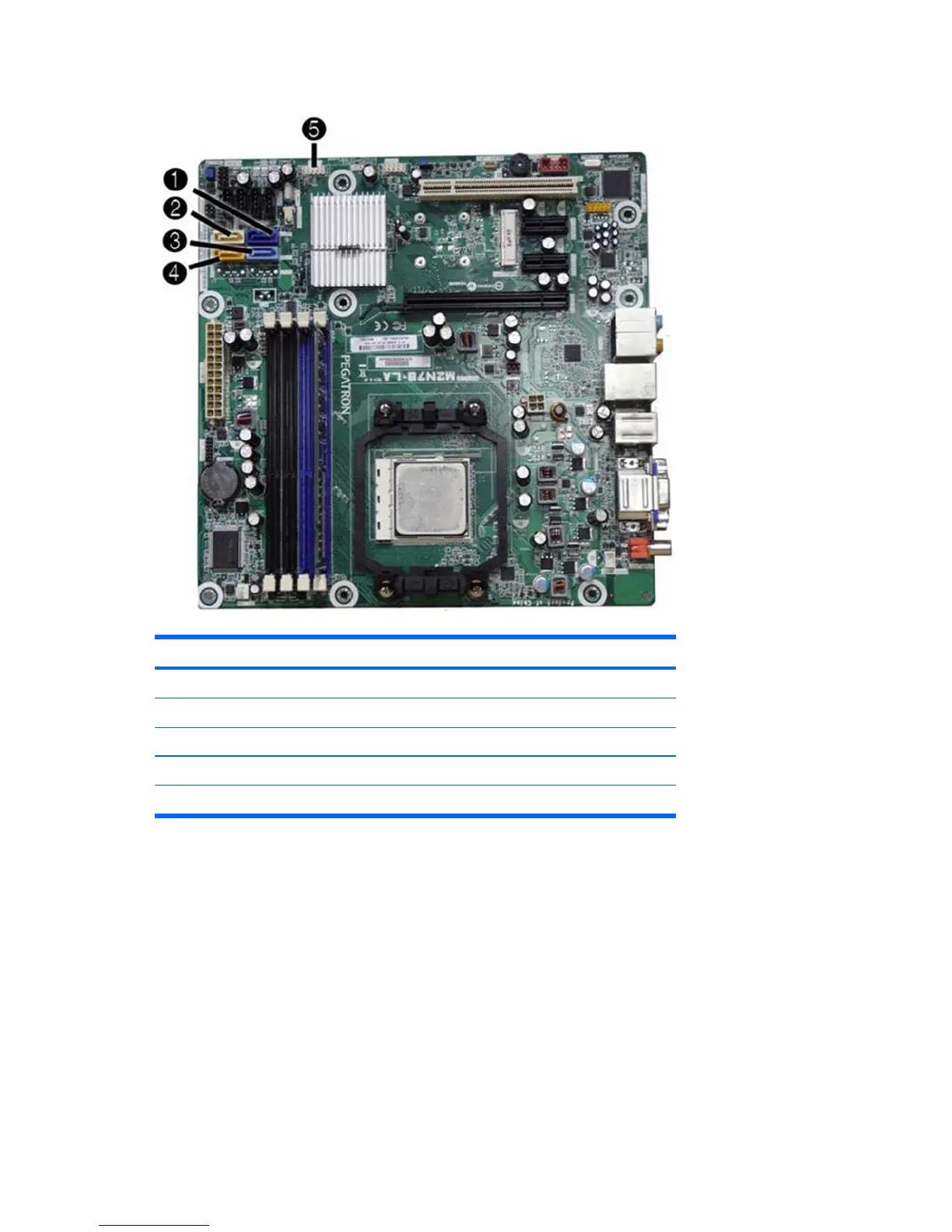

Figure 6-18 System Board Drive Connections – HP Pro 3015
Table 6-4 System Board Drive Connections
No. System Board Connector System Board Label Color
1 SATA1 SATA1 dark blue
2 SATA2 SATA2 white
3 SATA3 SATA3 light blue
4 SATA4 SATA4 orange
5 Media Card Reader F_USB2 white
52 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
