HP Pro 3500

5. If removing an optical drive, disconnect the cables from the rear of the drive.

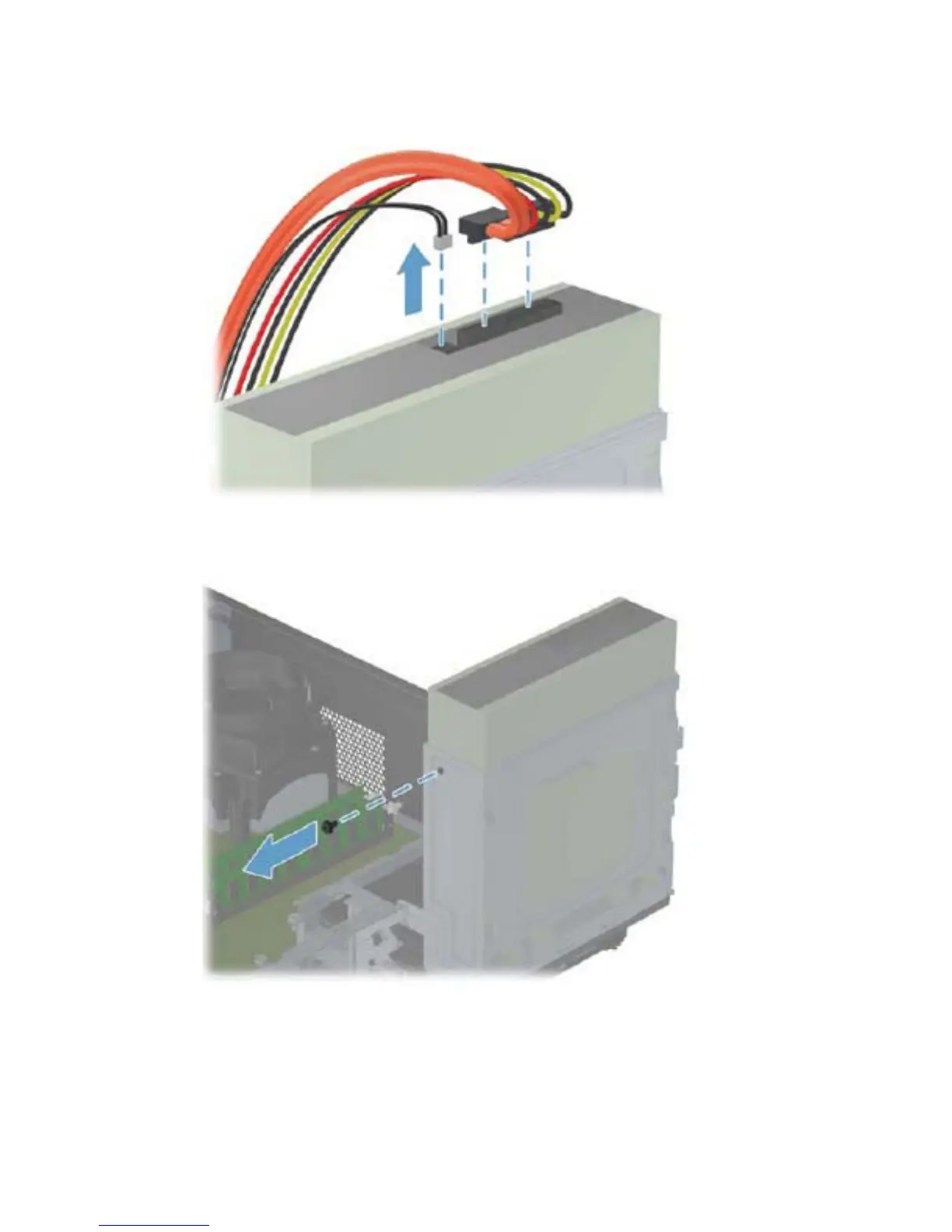

Figure 8-15 Removing the drive cables
6. Remove the Torx screw from the cage.
Figure 8-16 Removing the optical drive screw
7. Return the drive to its normal position.
Drives 97
