System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.

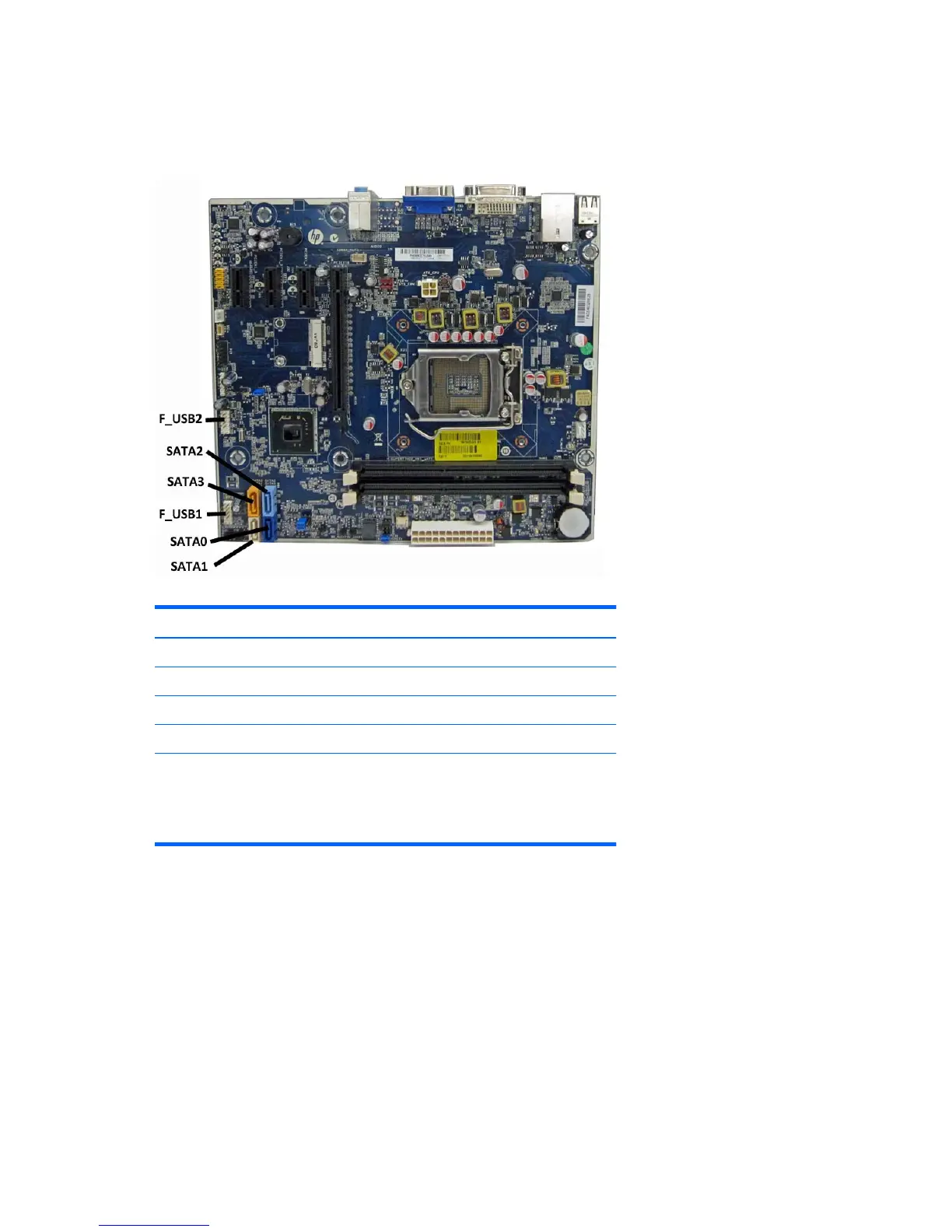

Figure 7-13 System Board Drive Connections (HP Pro 3400 shown)
Table 7-6 System Board Drive Connections
System Board Connector System Board Label Color
SATA0 SATA0 dark blue
SATA1 SATA1 white
SATA2 SATA2 light blue
SATA3 SATA3 orange
Media Card Reader F_USB1 (HP Pro
3400/3410/3500)
CARD_READER (HP Pro
3505)
white
black
60 Chapter 7 Removal and Replacement Procedures – Microtower Chassis
