HP Pro 3500

5. Remove the cables from the clip on the base pan of the computer.

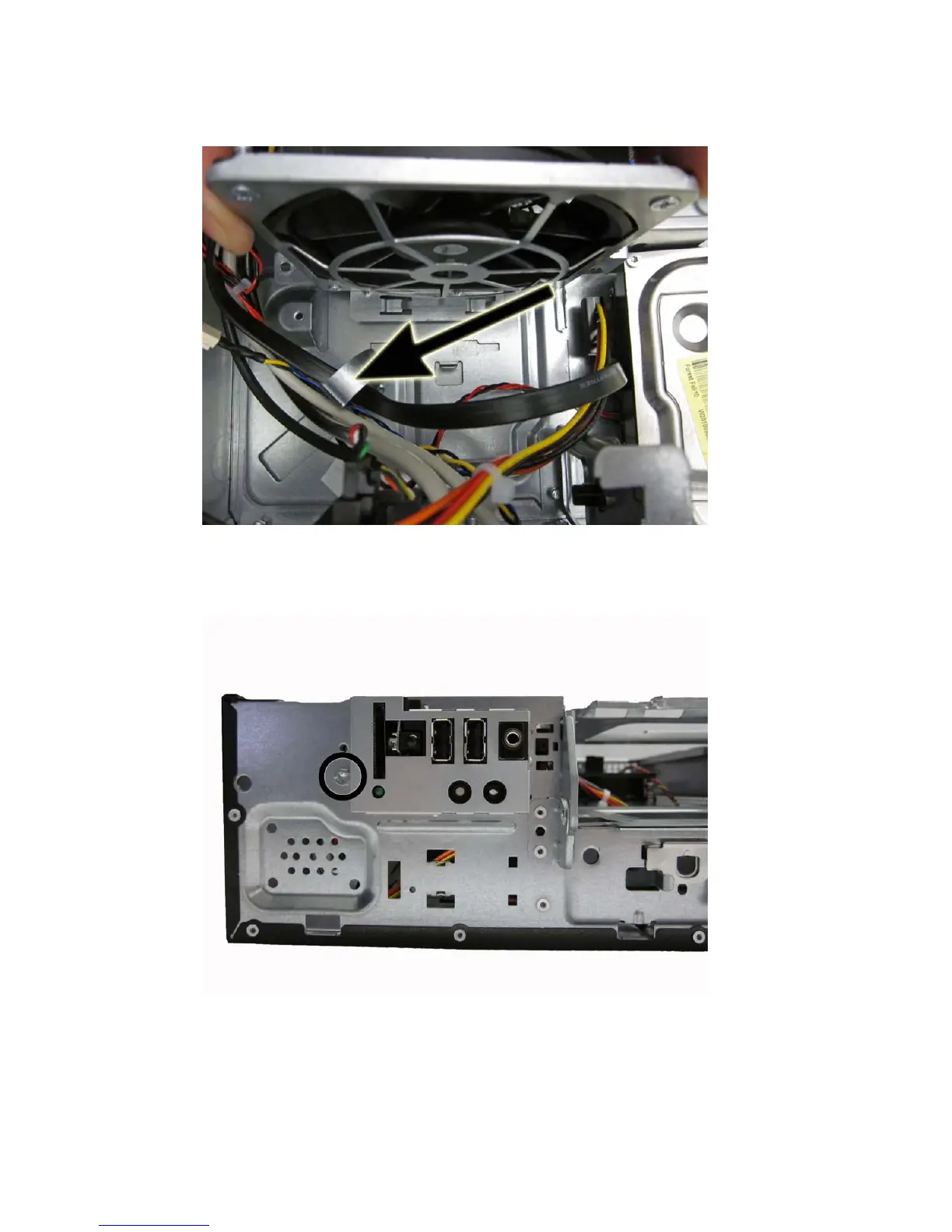

Figure 8-27 Removing the cables from the clip
6. From the front of the computer, remove the screw that secures the assembly to the front of the
chassis.
Figure 8-28 Removing the front USB assembly screw
Front USB Assembly 105
