4. Open both latches (1) of the memory module socket , and remove the memory module from the
socket (2).

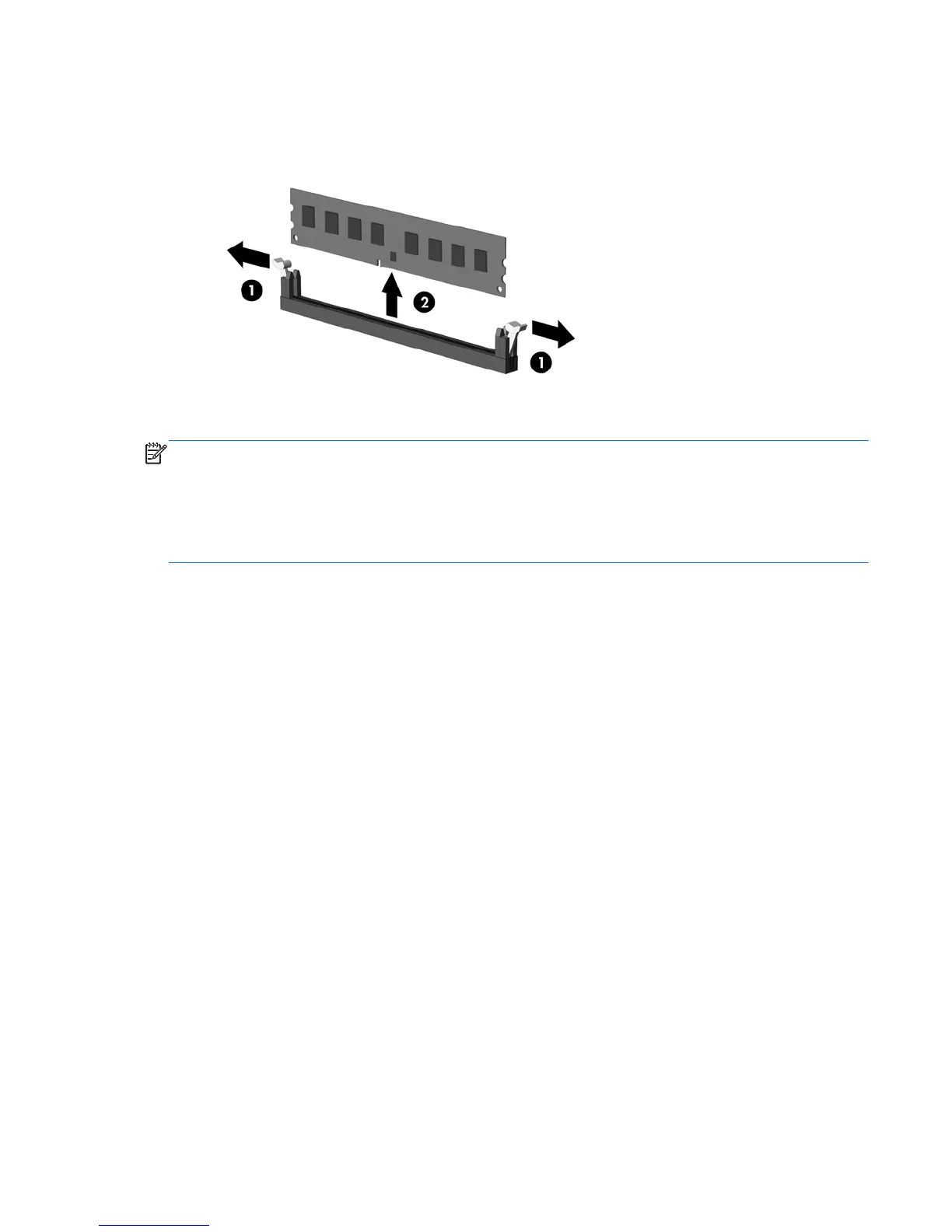

Figure 7-4 Removing a DIMM
To install a memory module, reverse the removal procedures.
NOTE: A memory module can be installed in only one way. Match the notch on the module with the
tab on the memory socket.
A DIMM must occupy the XMM1 socket.
To create a dual-channel memory configuration, the memory capacity of Channel A must equal the
memory capacity of Channel B.
