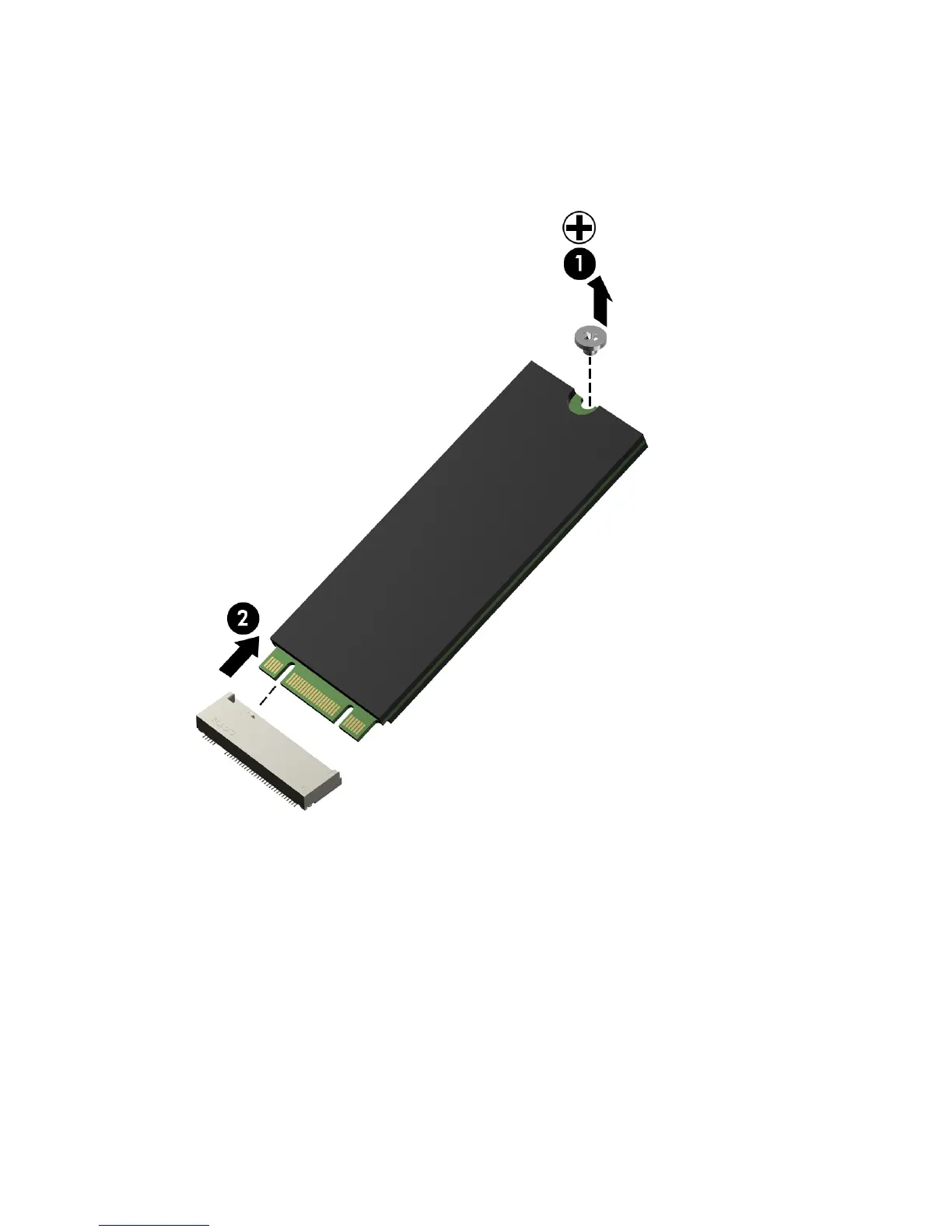

Remove the solid-state drive:
1. Remove the Phillips PM1.9×2.5 screw (1) that secures the solid-state drive to the system board. (The
solid-state drive tilts up.)
2. Remove the solid-state drive (2).
Reverse this procedure to install the solid-state drive.
