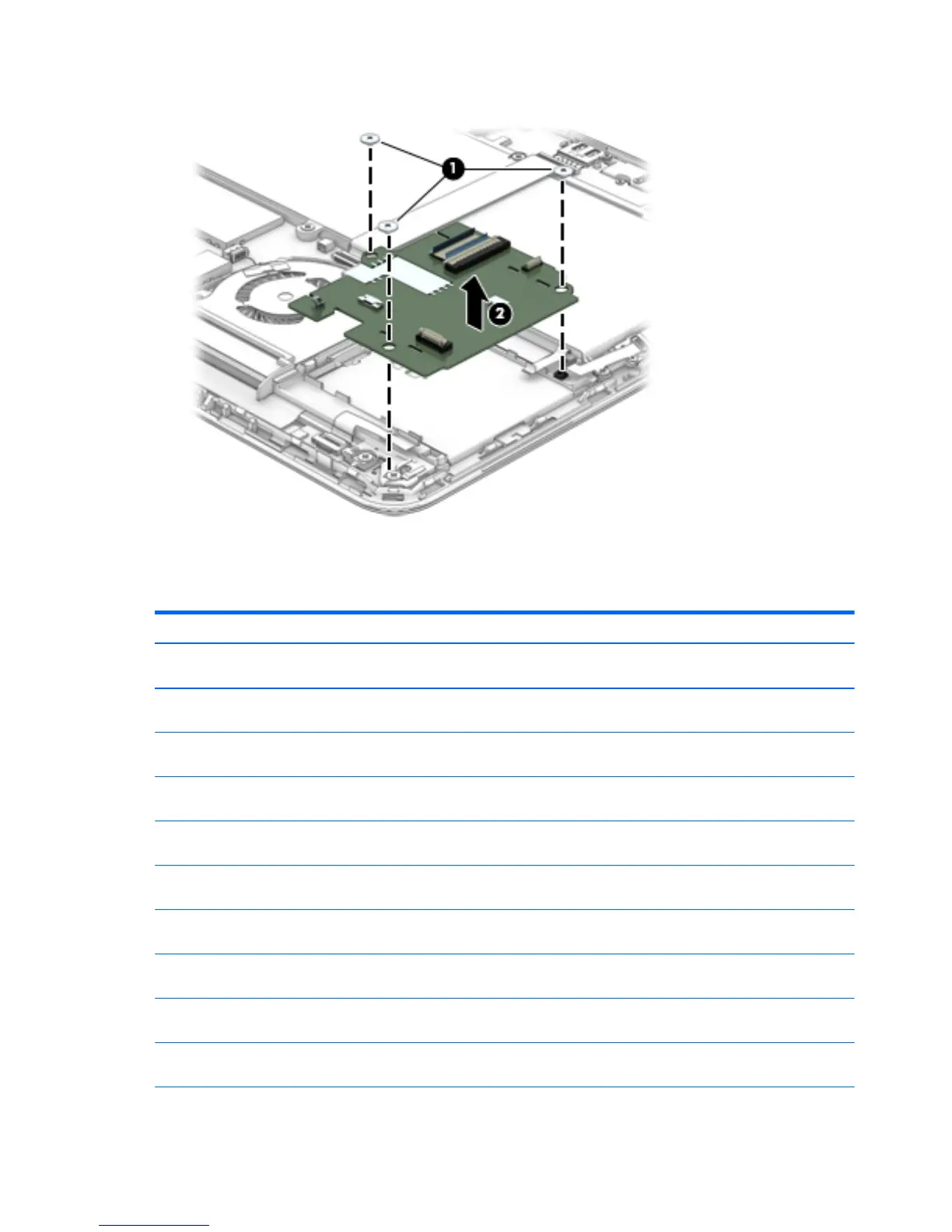

6. Remove the card reader board (2).
Reverse this procedure to install the card reader board.
System board
Description Spare part number
Equipped with an Intel Core i5-4302Y 1.60-GHz (SC turbo up to 2.30-GHz) processor (3.00-MB L3 cache,
dual core, 11.5 W), 8.0-GB of system memory, and the Windows 8 Professional operating system
766626-601
Equipped with an Intel Core i5-4302Y 1.60-GHz (SC turbo up to 2.30-GHz) processor (3.00-MB L3 cache,
dual core, 11.5 W), 8.0-GB of system memory, and the Windows 8 Standard operating system
766626-501
Equipped with an Intel Core i5-4302Y 1.60-GHz (SC turbo up to 2.30-GHz) processor (3.00-MB L3 cache,
dual core, 11.5 W), 8.0-GB of system memory, and a non-Windows 8 operating system
766626-001
Equipped with an Intel Core i5-4302Y 1.60-GHz (SC turbo up to 2.30-GHz) processor (3.00-MB L3 cache,
dual core, 11.5 W), 4.0-GB of system memory, and the Windows 8 Professional operating system
766625-601
Equipped with an Intel Core i5-4302Y 1.60-GHz (SC turbo up to 2.30-GHz) processor (3.00-MB L3 cache,
dual core, 11.5 W), 4.0-GB of system memory, and the Windows 8 Standard operating system
766625-501
Equipped with an Intel Core i5-4302Y 1.60-GHz (SC turbo up to 2.30-GHz) processor (3.00-MB L3 cache,
dual core, 11.5 W), 4.0-GB of system memory, and a non-Windows 8 operating system
766625-001
Equipped with an Intel Core i5-4202Y 1.60-GHz (SC turbo up to 2.00-GHz) processor (3.00-MB L3 cache,
dual core, 11.5 W), 8.0-GB of system memory, and the Windows 8 Professional operating system
766624-601
Equipped with an Intel Core i5-4202Y 1.60-GHz (SC turbo up to 2.00-GHz) processor (3.00-MB L3 cache,
dual core, 11.5 W), 8.0-GB of system memory, and the Windows 8 Standard operating system
766624-501
Equipped with an Intel Core i5-4202Y 1.60-GHz (SC turbo up to 2.00-GHz) processor (3.00-MB L3 cache,
dual core, 11.5 W), 8.0-GB of system memory, and a non-Windows 8 operating system
766624-001
Equipped with an Intel Core i5-4202Y 1.60-GHz (SC turbo up to 2.00-GHz) processor (3.00-MB L3 cache,
dual core, 11.5 W), 4.0-GB of system memory, and the Windows 8 Professional operating system
766623-601
54 Chapter 5 Removal and replacement procedures
