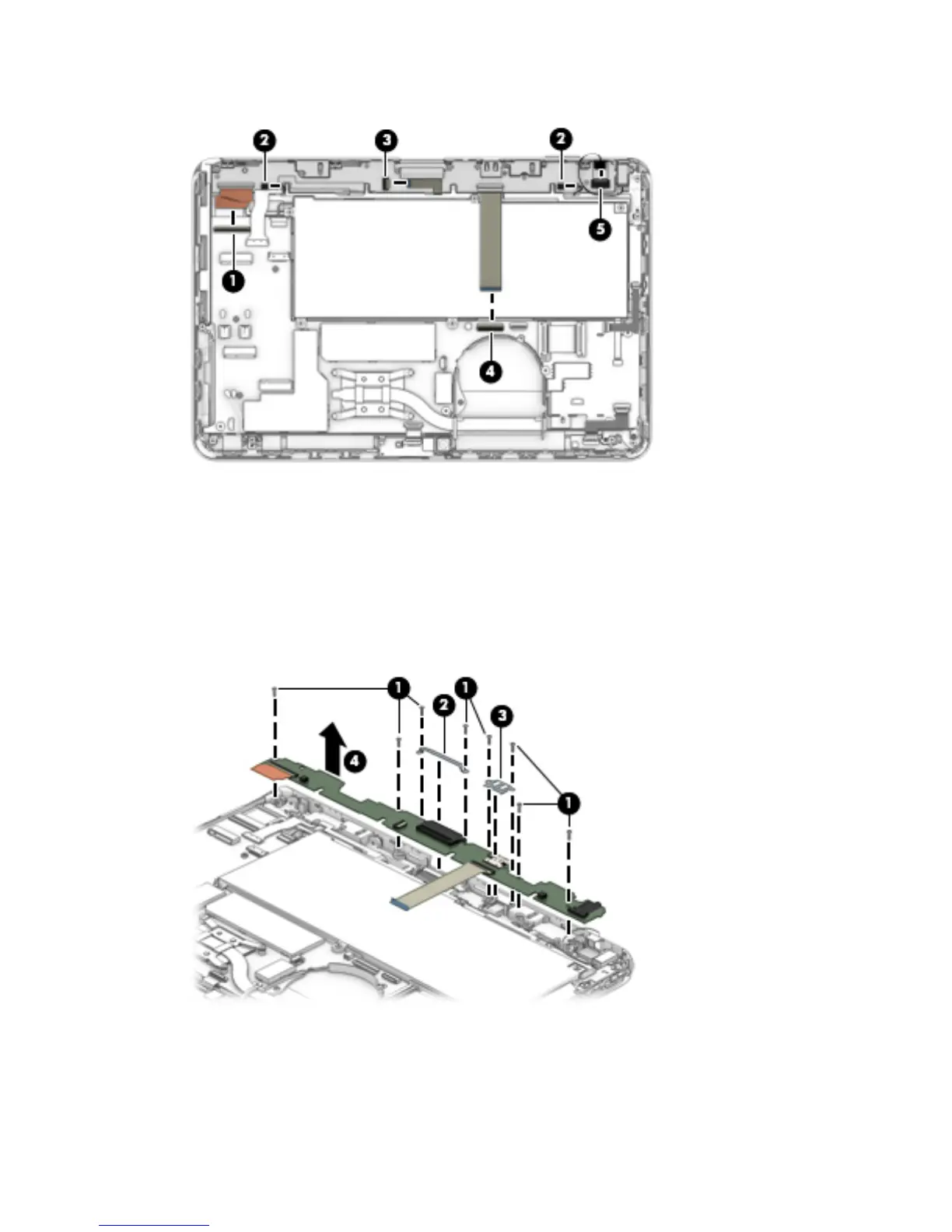

5. Disconnect the power connector cable (5) from the tablet I/O board.
6. Remove the eight Philllips PM1.5×5.5 screws (1) that secure the tablet I/O board and brackets to the
tablet frame.
7. Remove the docking connector bracket (2).
8. Remove the USB port bracket (3).
The docking connector bracket and USB port bracket are included in the Bracket Kit, spare part number
766615-001.
9. Remove the tablet I/O board (4) and cables.
Reverse this procedure to install the tablet I/O board.
60 Chapter 5 Removal and replacement procedures
