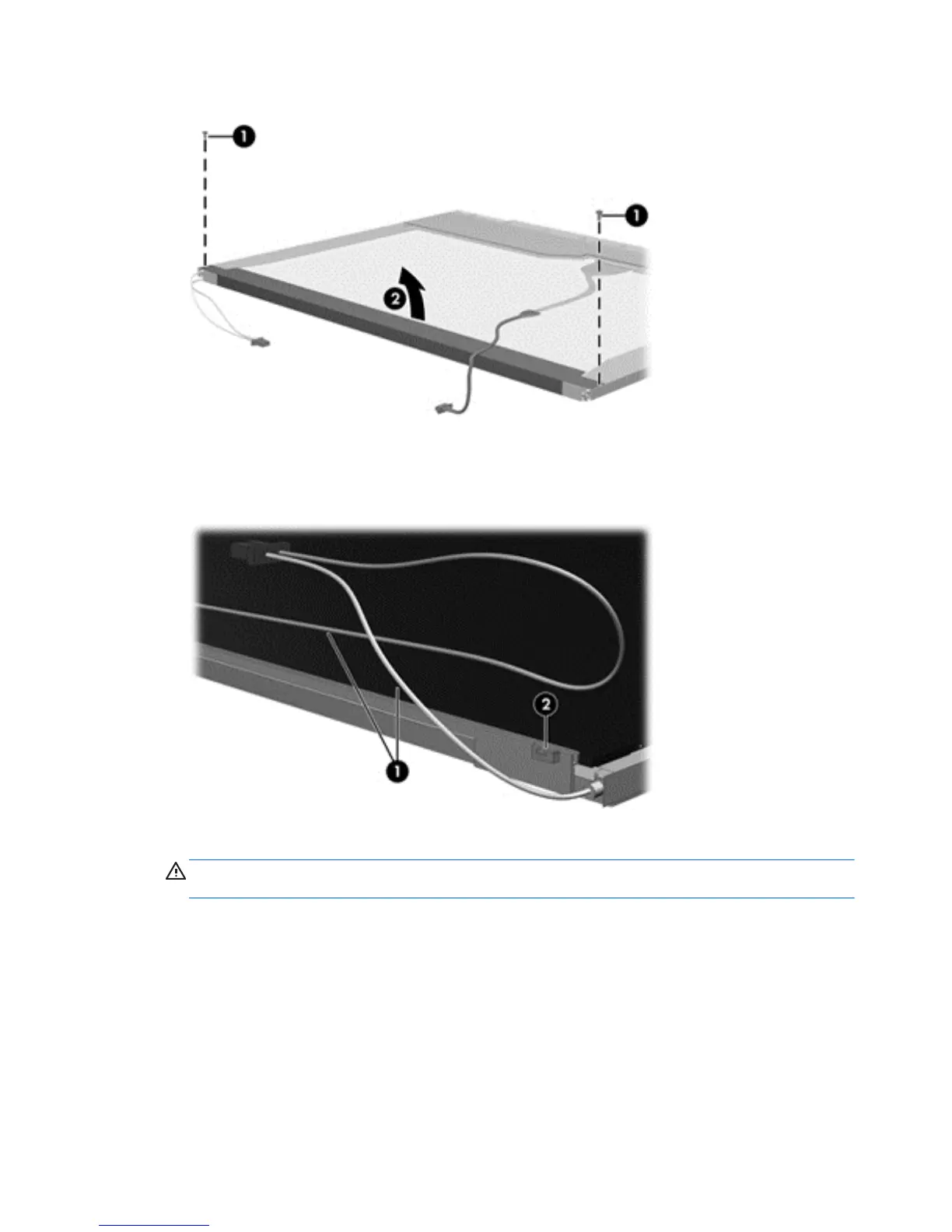

12. Lift the top edge of the backlight cover (2) and swing it outward.
13. Remove the backlight cover.
14. Position the display panel right-side up.
15. Remove the backlight cables (1) from the clip (2) in the display panel.
16. Position the display panel upside-down.
WARNING! The backlight contains mercury. Exercise caution when removing and handling the
backlight to avoid damaging this component and causing exposure to the mercury.
128 Chapter 16 Recycling
