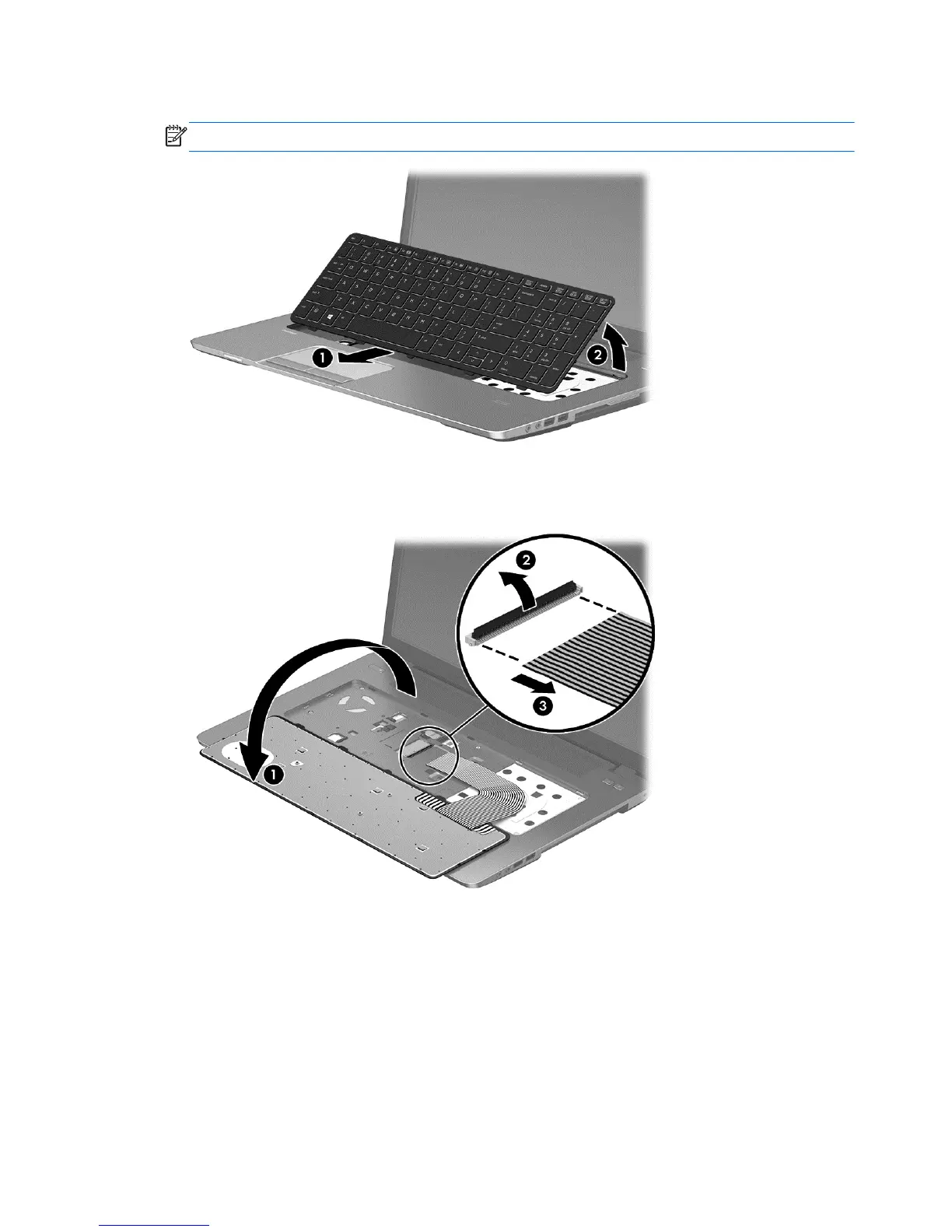

6. Lift the top of the keyboard up at an angle (2).
NOTE: Make sure not to prematurely pull the keyboard cable out of the system board connector.
7. Rotate the keyboard until it rests on the palm rest (1), and then disconnect the keyboard cable by lifting
the keyboard connector latch (2), and then disconnecting the keyboard cable from the system board
(3).
8. Remove the keyboard.
Reverse this procedure to install the keyboard.
50 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
