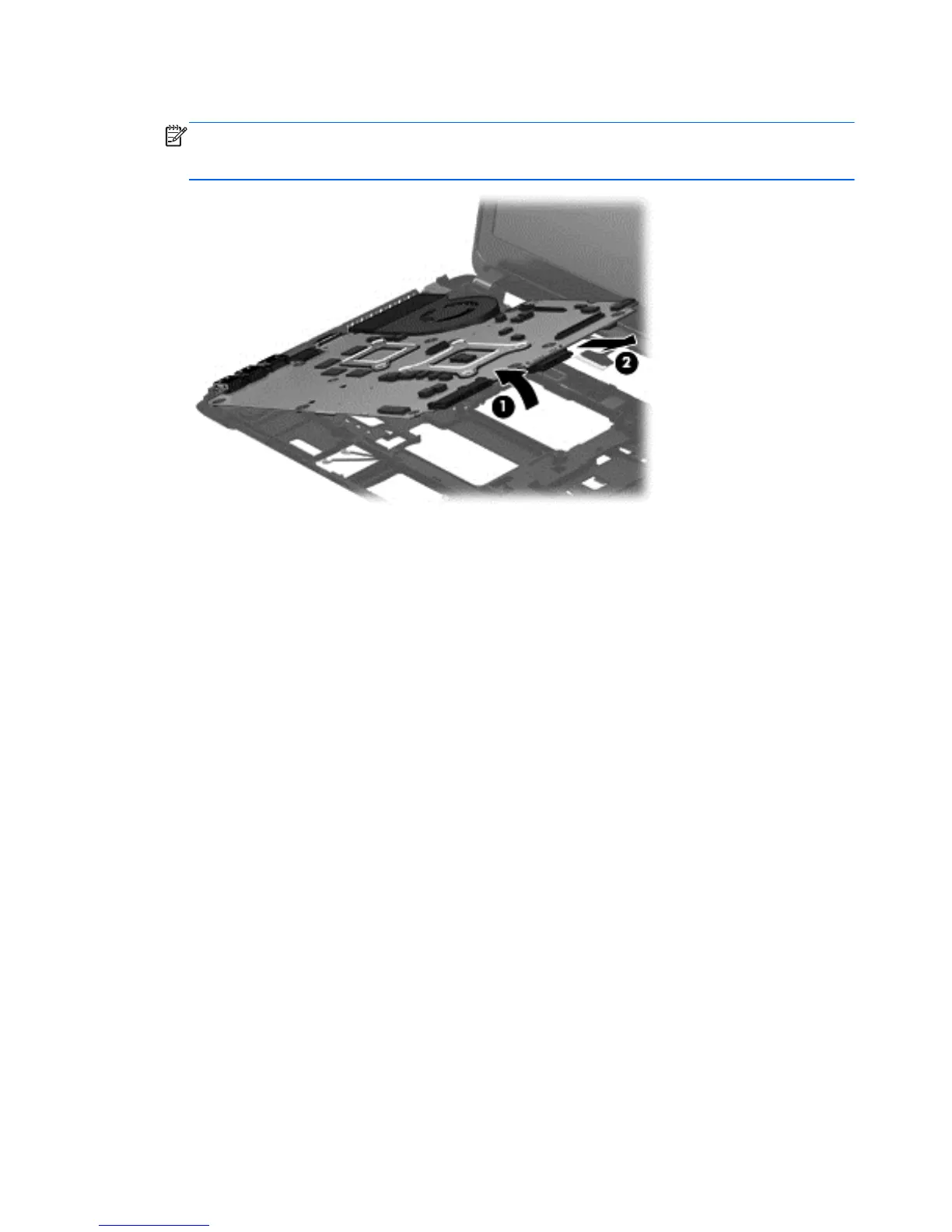

6. Pull the system board up and toward the right to remove it from the computer (2).
NOTE: The power cable connects to a connector on the bottom of the system board. When you
remove the system board, the power cable will be removed from its routing path and remain connected
to the system board.
Reverse this procedure to install the system board.
68 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
