h. System board (see System board on page 66)
i. Fan/heat sink assembly (see
Fan/heat sink assembly on page 73)

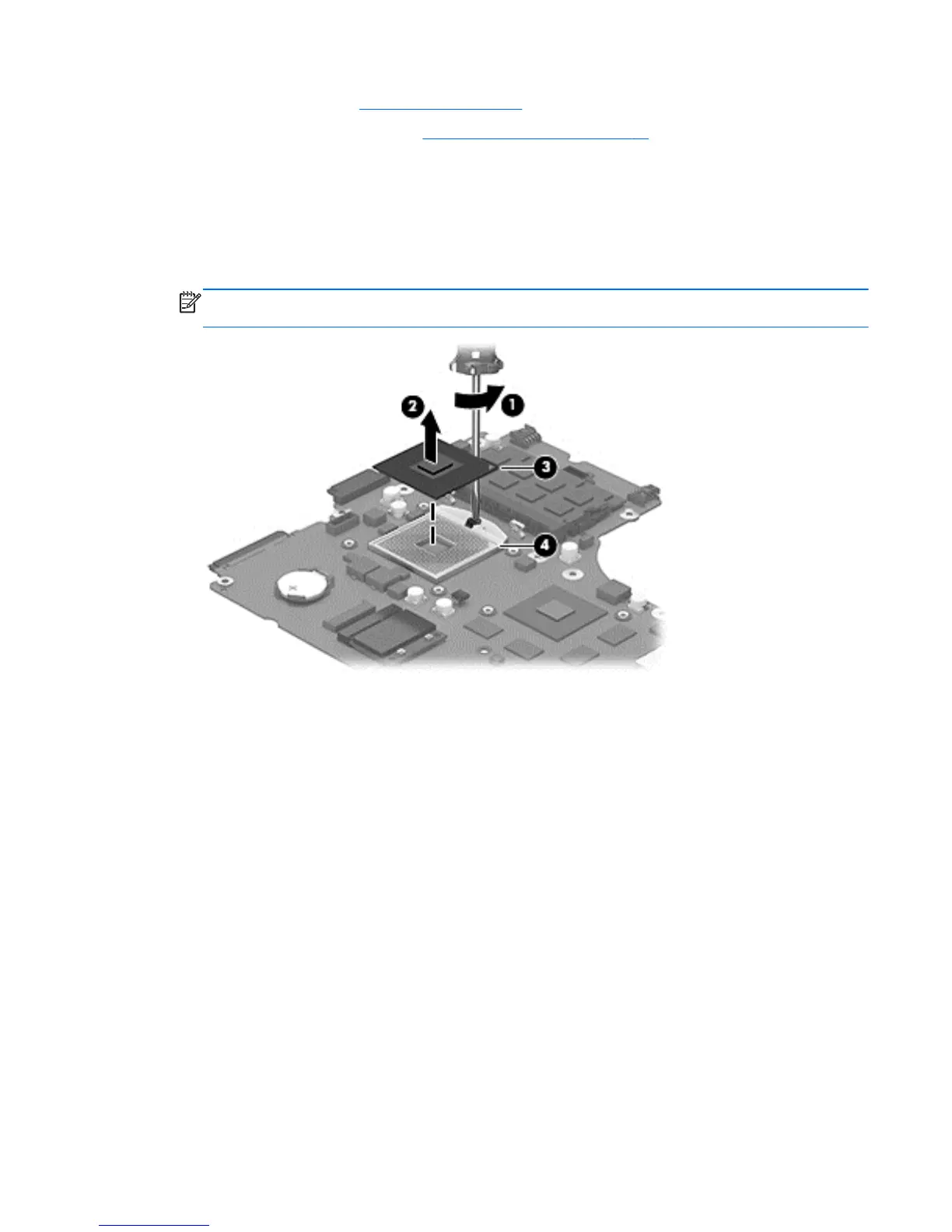

Remove the processor:
1. Position the system board upside-down.
2. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn counterclockwise
until you hear a click.
3. Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle embossed on the
processor slot (4) when you install the processor.
Reverse this procedure to install the processor.
Component replacement procedures 77
