M.2 solid-state drive (see M.2 solid-state drive on page 42)
●
Heat sink (see Heat sink assembly on page 72)
Remove the system board:
1. Position the computer upright on a at surface.

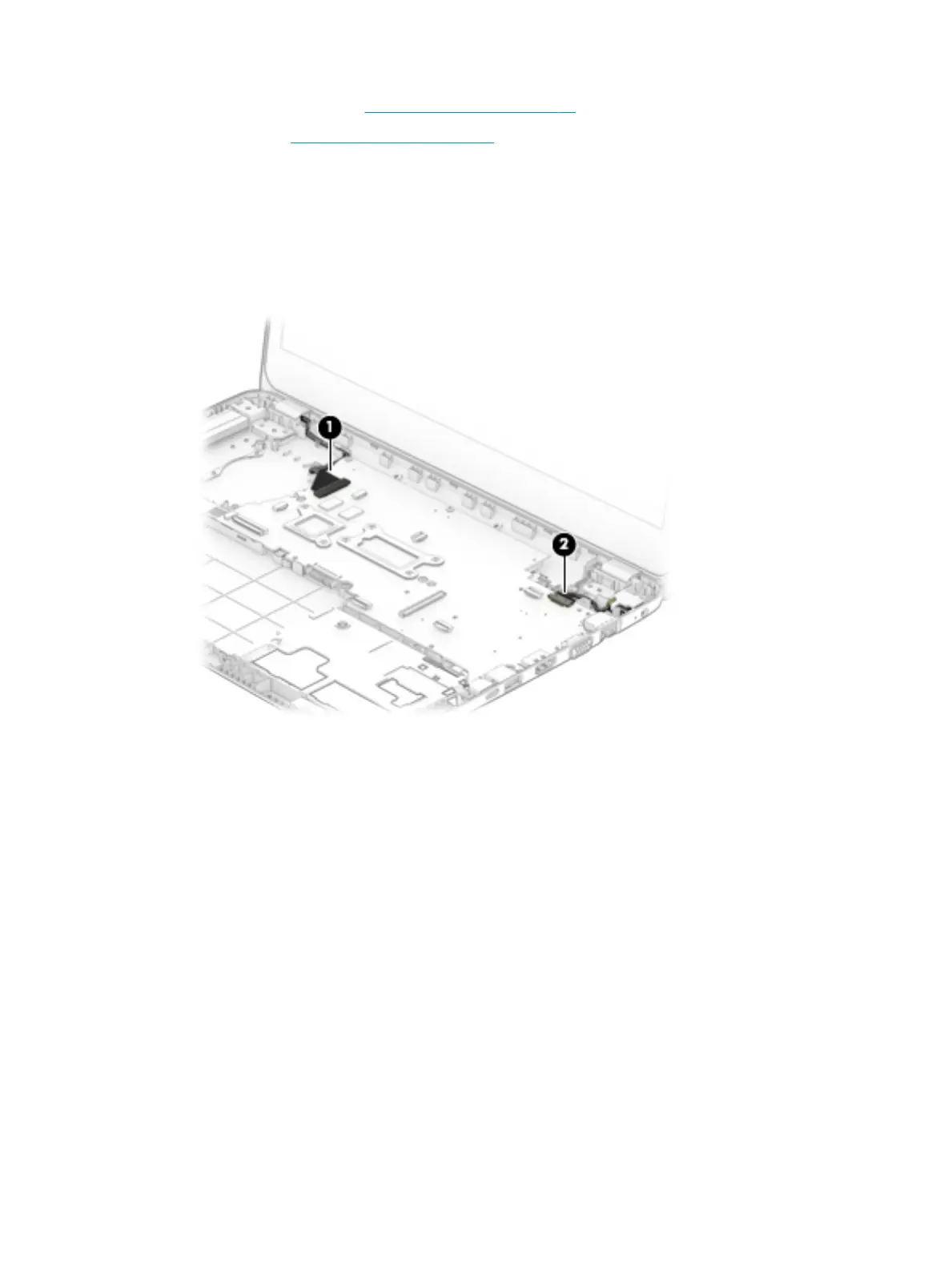

2. Disconnect the following cables from the system board:
(1) Display cable
(2) Power connector cable
3. Remove the 3 Phillips PM2.5×5.0 screws (1) that secure the system board to the computer.
4. Lift the bracket from atop the USB-Type C port (2).
5. Rotate the right side of the system board upward (3).
6. Pull the hard drive cable through the hole in the chassis when removing the system board (4).
Component replacement procedures 69
