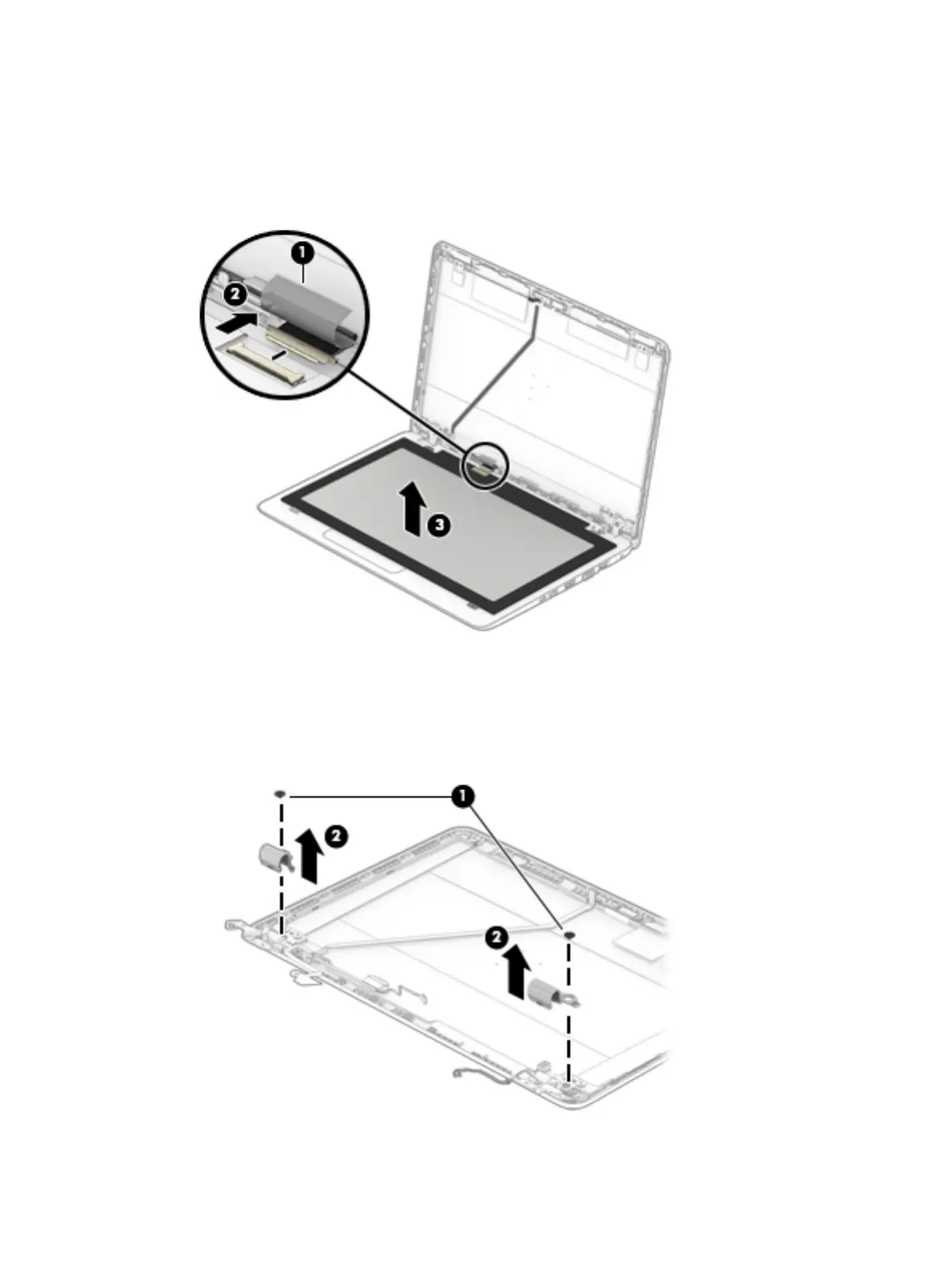

11. On the back of the display panel, release the adhesive strip that secures the display panel cable to the
display panel (1), and then disconnect the cable (2).
12. Remove the display panel from the display enclosure (3).
Raw display panels are available using spare part number 839668-002 for HD panels and 809002-002
for FHD panels.
13. If it is necessary to remove or replace the hinge covers, remove the 2 Phillips PM2.5×2.5 screws (1) that
secure the hinge covers to the display enclosure.
14. Remove the hinge covers from the display hinges (2).
Display hinge covers are available using spare part number 905699-001.
Component replacement procedures 79
