Power connector cable
Table 5-17 Power connector cable description and part number
Description Spare part number
Power connector cable L01048-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 32).
2. Place the computer in Battery Safe mode (Battery Safe mode on page 32).
3. Remove the bottom cover (Bottom cover on page 33).
4. Remove the battery (Battery on page 34).
5. Remove the display (Display assembly on page 57).

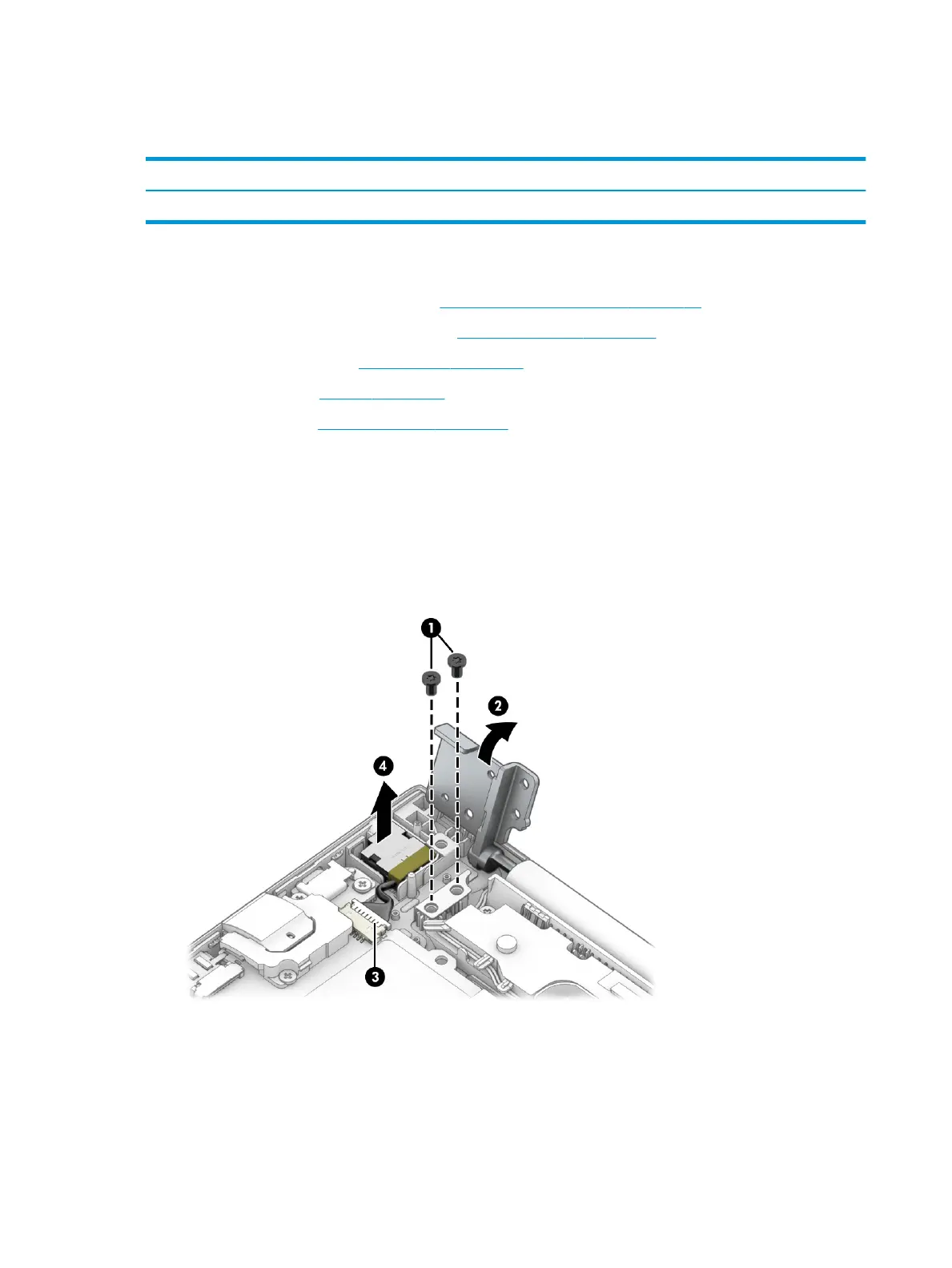

Remove the power connector cable:
1. Remove the two Torx T8 2.5 × 4.0 screws from the right hinge (1).
2. Rotate the hinge up to the upright position (2).
3. Disconnect the cable from the system board (3).
4. Remove the connector from the computer (4).
Reverse this procedure to install the power connector cable.
66 Chapter 5 Removal and replacement procedures for authorized service provider parts
