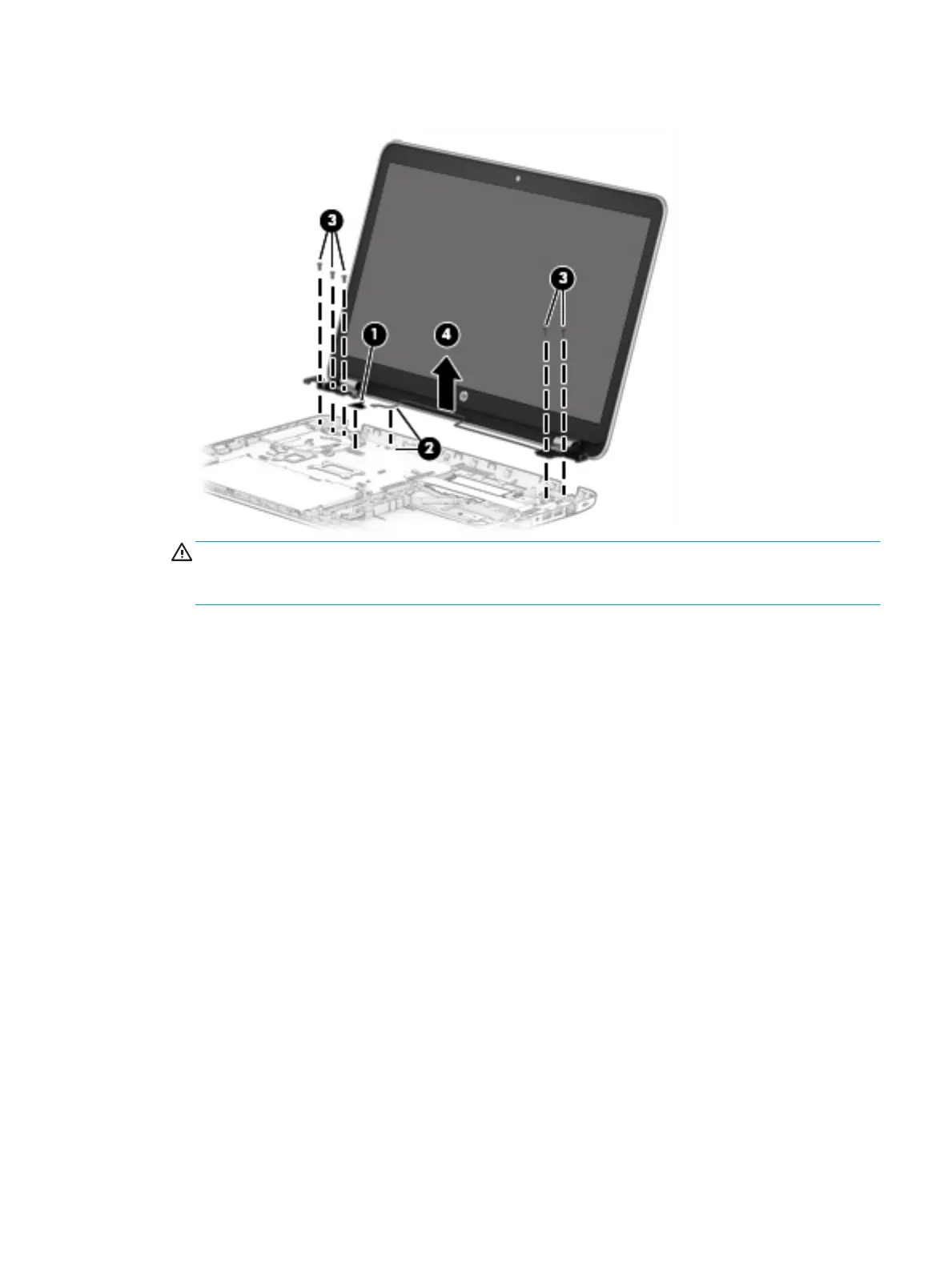

5. Lift the display assembly straight up and remove it (4).
CAUTION: When installing the display assembly, be sure that the wireless antenna cables are routed
and arranged properly. Failure to properly route the antennas can result in degradation of the
computer's wireless performance.
6. To remove the display bezel, remove the 2 screw covers (1) and the 2 Phillips PM2.0×3.0 screws (2) from
the bottom corners of the display bezel.
7. Flex the top (3) of the bezel, the inside edges of the left and right sides (4), and then the bottom (5) of
the bezel until it disengages from the display enclosure.
Component replacement procedures 77
