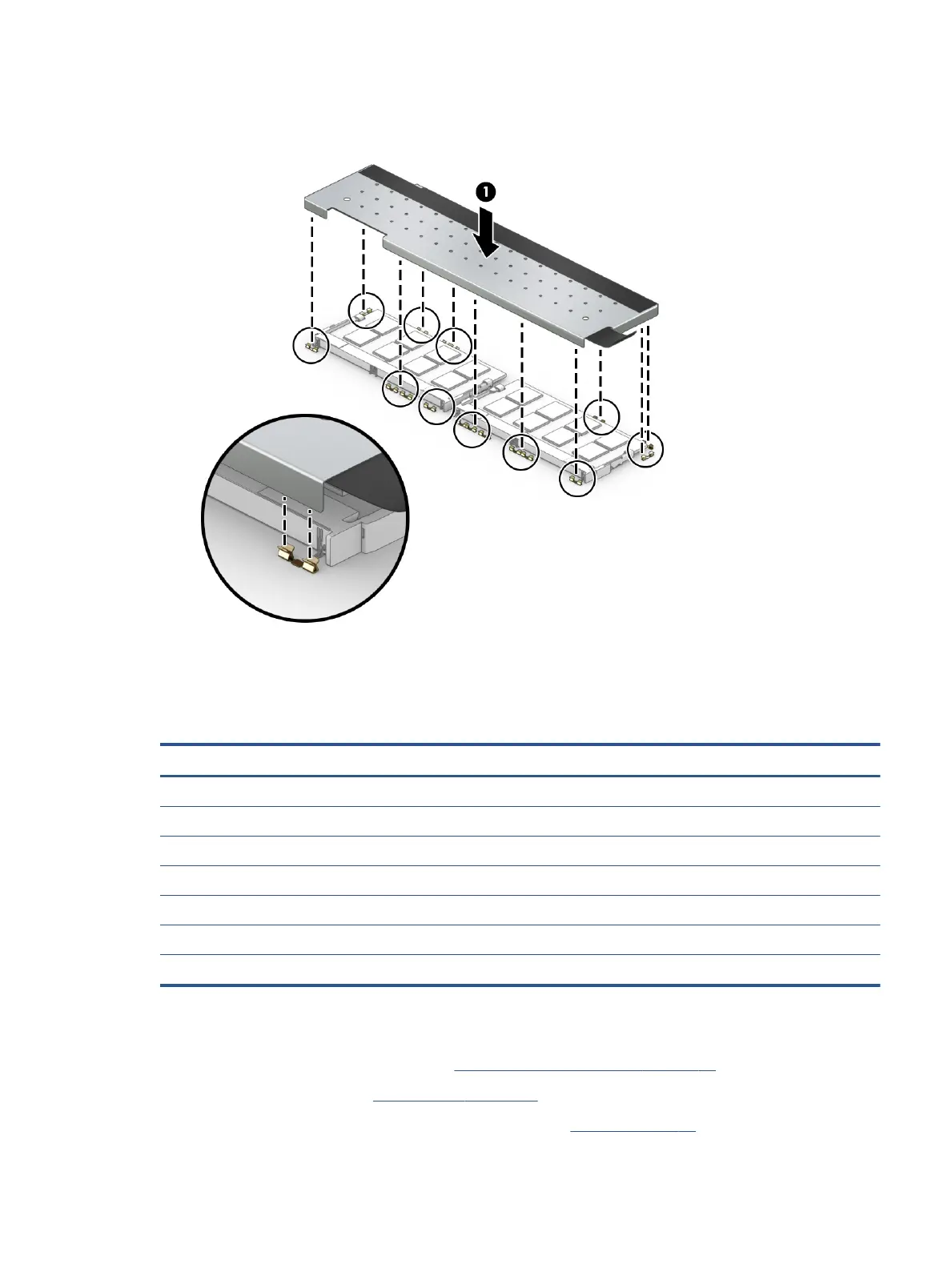

3. Replace the cover by inserting the edges of the cover into the clips on the system board that surround
the memory modules (1).
Solid-state drive
To remove the M.2 solid-state drive, use this procedure and illustration.
Table
5-3 Solid-state drive descriptions and part numbers
Description Spare part number
1 TB, PCIe, TLC L85348-001
512 GB, PCIe, TLC L85360-001
512 GB, PCIe, value L85364-001
256 GB, PCIe, TLC L85350-001
256 GB, PCIe, value L85354-001
128 GB, SATA-3, TLC L85346-001
Solid-state drive cover (included in Miscellaneous Parts Kit) M33155-001
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the bottom cover (Bottom cover on page 31).
3. Disconnect the battery cable from the system board (see Battery on page 38).
Component replacement procedures 35
