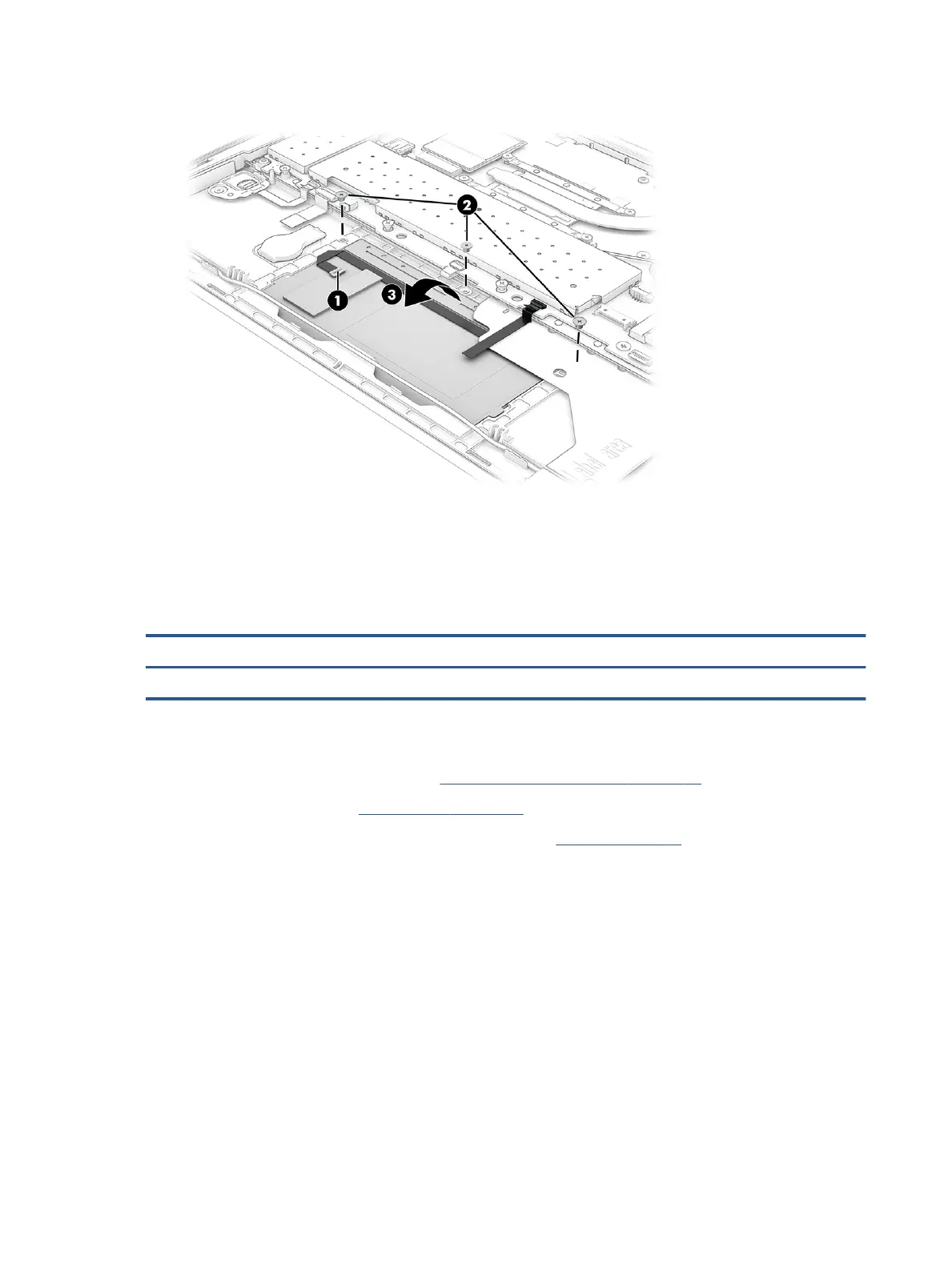

3. Lift the top of the touchpad, and then pull it away from the bottom of the computer to remove it (3).
Reverse this procedure to install the touchpad.
Fan
To remove the fan, use this procedure and illustration.
Table
6-10 Fan description and part number
Description Spare part number
Fan assembly M30650-001
Before removing the fan, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the bottom cover (Bottom cover on page 31).
3. Disconnect the battery cable from the system board (see Battery on page 38).
Remove the fan assembly:
1. Remove the cables from the clips on the side of the fan (1).
2. Disconnect the fan cable from the system board (2).
48 Chapter 6 Removal and replacement procedures for authorized service provider parts
